Acer E-Mill EVS 3VSII VS Vertical Mill w/Newall DRO, PF

Mills, Vertical
Manufacturer:
ACER
Model:
EVS-3VSII
Year:
2014
Stock #:
2161
Serial #:
N14010053
Country:
United States
Table-W9"228.6 mm
Table-L49"1,244.6 mm
Travel-Long28"711.2 mm
Travel-Cross12"304.8 mm
Power3 hp2.2 kW
RPM4,500 RPM4,500 RPM
TaperR8R8
Dimensions67 x 63 x 7167 x 63 x 71
Weight2380 Lbs2380 Lbs

Acer E-Mill EVS 3VSII Variable Speed Vertical Mill
Table size - 9" x 49"
Longitudinal Travel - 28"
Cross Travel - 12"
Knee Vertical Travel - 16"
Ram Travel - 12"
Table Load - 750 Lbs.
Spindle Motor - 3 HP
Head moves right / left - 90 deg
Head tilt front / back - 45 deg
Spindle Taper - R8
Spindle Speeds, infinitely variable - 60 to 4500 rpm
Power Quill Feeds - 0.0015", 0.003", 0.006" ipr
Quill Diameter - 3.375"
Quilll Travel - 5"
Dimensions 67" x 63" x 71"
Weight, approx - 2380 Lbs

Equipped with:
Newall DP700 Digital Readout

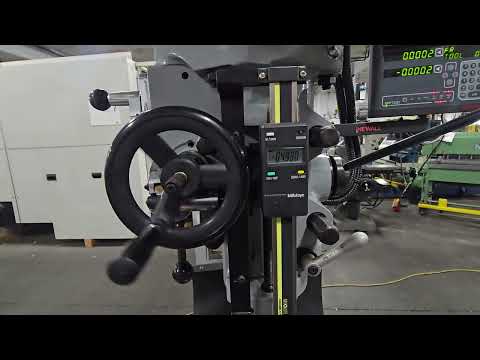

Mitutoyo Z axis Readout
“EVS” Electronic Variable Speed
Power Longitudinal Table Feed
1-Shot Lubrication

* Notes:
Machine was recently removed community college and looks to be in excellent condition.
Specifications taken from sources deemed reliable and subject to independent verification by the buyer.
Seller can load by appointment.
