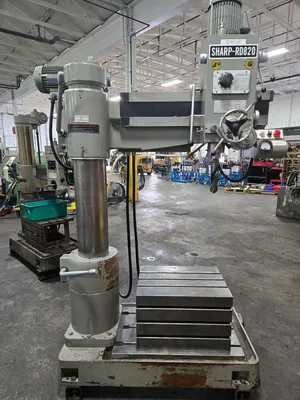

8" x 36" Sharp RD820 Radial Arm Drill w/Riser Block & Vice

The Sharp RD-820 is a radial arm drill press, designed for heavy-duty drilling, tapping, boring, and other machining operations. It features a robust column and arm structure, hardened and ground ways, and an electric motor for arm elevation. The RD-820 is suitable for drilling in cast iron and steel, and can perform various functions like counter-boring, spot-facing, and more.
8" x 36" Sharp RD820 Radial Arm Drill,
S/N 17338,
with 4MT,
1,500-RPM,
Riser Block
Vice
Key Features and Specifications:
Column Diameter: 8.29 inches.
Spindle: MT#4, with a 3 HP motor.
Drilling Capacity: 1.968 inches cast iron, 1.259 inches steel.
Boring Capacity: 4.125 inches cast iron, 2.75 inches steel.
Arm Elevation: Controlled by electric motor.
Table: Features T-slots and drain channels.
Applications: Drilling, tapping, boring, reaming, lapping, screwing, counter boring, spot facing, and more.
Materials: Cast iron and steel.
Safety Features: Includes a safety device to prevent arm drop.
