13"/19" x 40" HARRISON M300 Geared Head Gap Bed Lathe

SPECIFICATIONS:
Centers:
Height: 167mm (6-3/16”)
Admit Between: 635/1000mm (25/40”)
Swing:
Over Bed: 330mm (13”)
Over Cross Slide: 210mm (8-1/8”)
In Gap Diameter: 480mm (19”)
Length: 117mm (4-5/8”)
Spindle:
Bore: 40mm (1-9/16”)
Nose: D1-3 Camlock
Morse Taper:
in Nose: 3 MT
Speeds:
Range 40 to 2500rpm
Motor: 2.2kW
Leadscrew:
Diameter: 28mm (1-1/8”)
Thread : 6mm pitch or 4 TPI
Threads Metric Pitches: 45 from 0.2 to 14mm
Imperial Pitches: 52 from 2 to 56 TPI
Module Pitches: 18 from 0.3 to 3.5 MOD
Diametral Pitches: 18 from 8 to 56 DP
Feeds:
Metric: 21 from 0.3 to 2mm/rev
Imperial: 21 from .001 to .080in/rev
Cross Slide:
Width: 140mm (5-1/2”)
Travel: 190mm (7-1/2”)
Top Slide:
Width: 82mm (3-1/4”)
Travel: 92mm (7-1/2”)

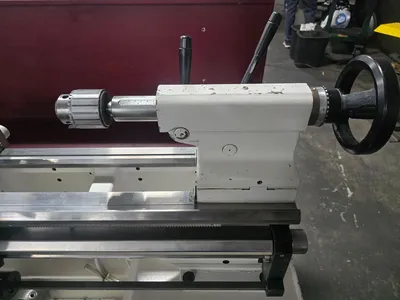

Tailstock:
Quill Diameter: 42mm (1-5/8”)
Travel: 110mm (4-5/16”)
Morse Taper: 3 MT
Weight:
710/790kg (1562/1738lbs)
Dimensions:
L x W x H: 1.68x.97x1.4m (66”x38”x55”)
