| Table-W | 16" | 406.4 mm |
| Table-L | 32" | 812.8 mm |
| Horz/Vert | Horz | Horz |
| Power | 5 hp | 3.7 kW |
| Grinding Wheel Width | 1.5" | 38.1 mm |
| Grinding Wheel Dia. | 14" | 355.6 mm |
| Dimensions | 132" x 87" x 82" | 132" x 87" x 82" |
| Weight | 8800 lbs | 8800 lbs |

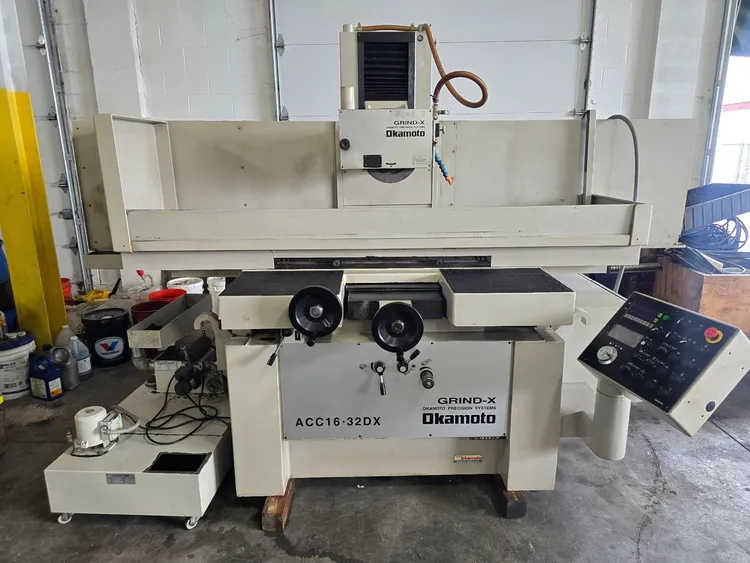

Specifications:
Table Working Capacity 16” x 32”
Table Load Capacity 1,540 lbs.
Longitudinal Feed Rate 1-82 ft/min
Han Feed per Revolution 1.85”
Cross Feed Hand Feed/ Revolution 0.25”
Cross Feed – Automatic Intermittent Feed 0.02 -0.8
Cross Feed – Automatic Continuous Feed 8-40
Auto. Downfeed 0.00005-0.0015 (10)
Vertical Rapid Feed & Downfeed 16 in/min

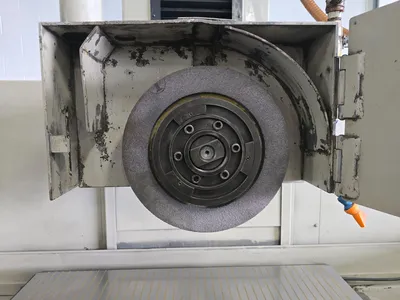

Grinding Wheel 14/12 x 1.5 x 5”
Speed 1,500 RPM
Grinding Wheel Spindle Motor 5 HP
Wired 460V 3 phase
Hydraulic Oil Pump Motor 3 HP
Vertical Rapid Feed & Downfeed Motor 0.5 AC Servo
Approximate Dimensions 132” x 87”
Approximate Height 82”
Approximate Weigh 8,800 lbs.
Preliminary Specifications – Subject to Verification
