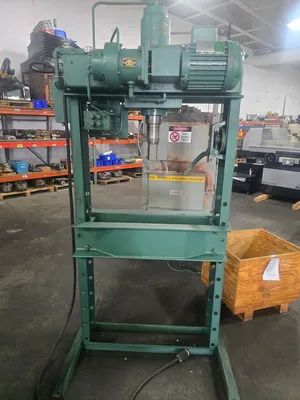

Dake Elec-Draulic II 50-Ton Hydraulic Press model 908-050

Specifications
Capacity: 50 Tons
Operation: Electric
Horsepower: 2HP
Width Between Uprights: 32¾”
Width Between Table Channels: 7¼”
Min Ram to Table: 10-1/8”
Max Ram to Table: 45-1/8”
Ram Travel: 10”
Pressing Speed: 8 in/min
RPM: 1,800
Electrical Requirements: 220V/440V Three Phase
Footprint: 43½” x 36”
Height: 86”
Weight: 1,360 lbs

Features
Electric operation provides smooth, consistent pressing action
Variable ram speed allows fingertip control of ram movement for precise control
H-frame mounted control allows convenient control of press when work-head is out of operator’s reach
Adjustable table permits easy vertical movement by means of self-locking hoist
Double-acting cylinder permits pulling as well as pressing ram action
Safety valve protects against overloads
T-ring seals prevent pressure loss
