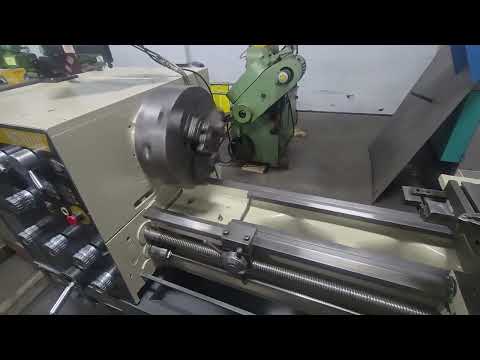

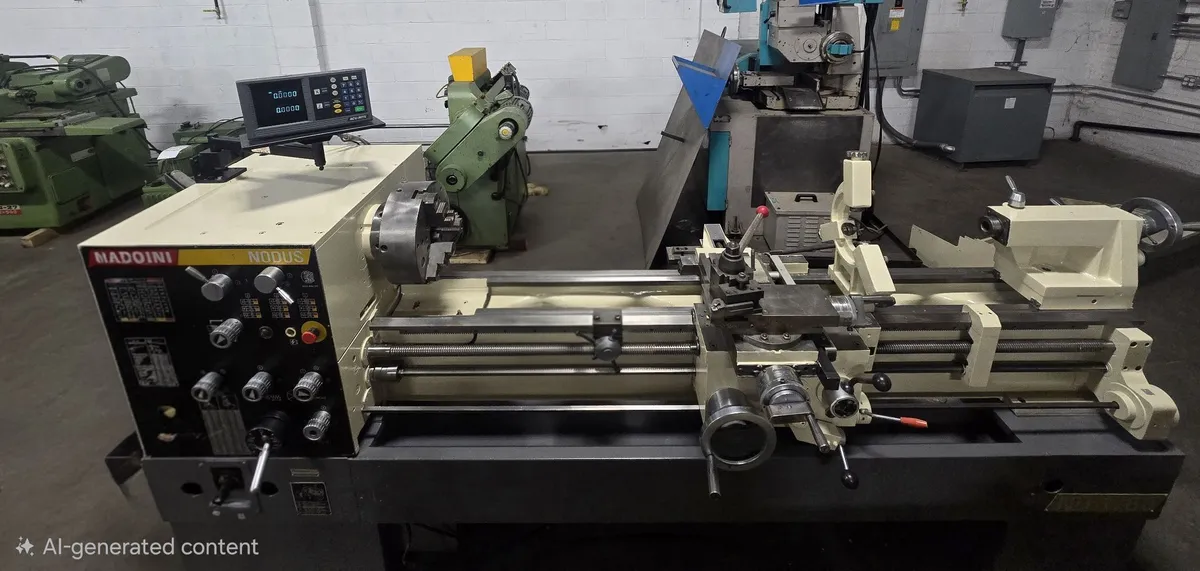

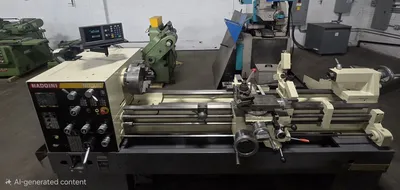

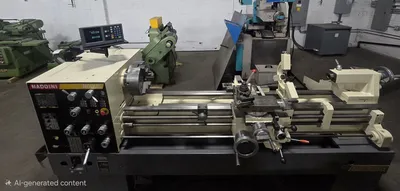

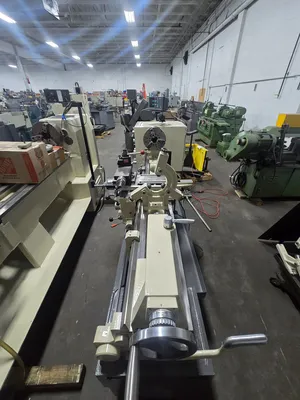

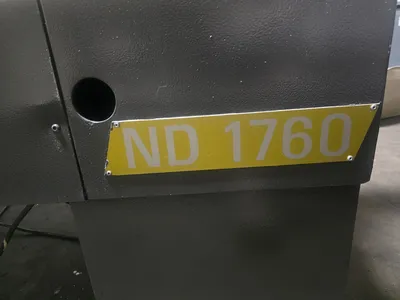

17"/24" x 60" NARDINI NODUS ND1760 Gap Bed Engine Lathe w/Acurite DRO, Taper

SPECIFICATIONS:

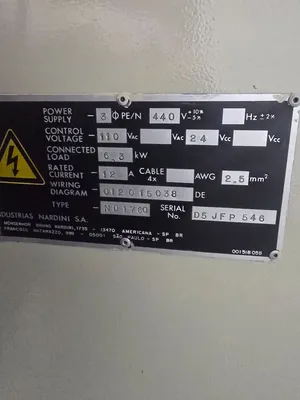

S/N: D5JFP546
SWING OVER BED ....................... 17-1/4"

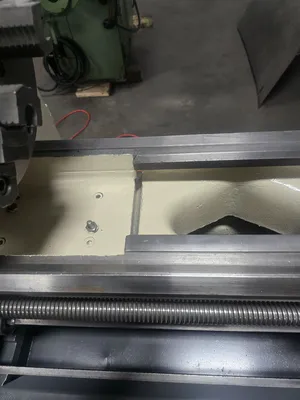

SWING IN REMOVEABLE GAP .............. 24-3/4"
SWING OVER CROSS SLIDE ............... 10-5/8"
HOLE THRU SPINDLE .................... 2-1/32"
DISTANCE BETWEEN CENTERS ............. 60"
SPINDLE NOSE ......................... D1-6"CAMLOCK

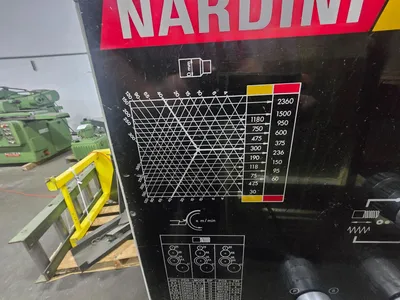

SPINDLE SPEED RANGE (18) ............. 30 - 2360 RPM
LONGITUDINAL FEED RANGE .............. .0021 - .0976 IPR
CROSS FEED RANGE ..................... .0010 - .0488 IPR

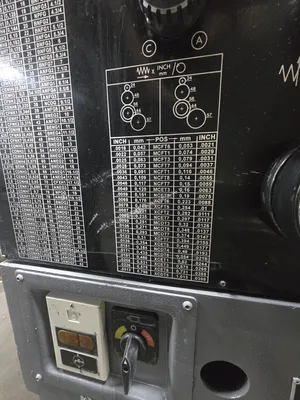

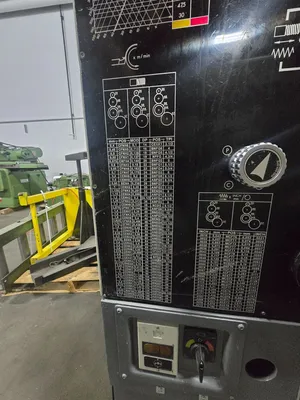

ENGLISH THREADING RANGE (54) ......... 2-3/4 - 42 TPI
METRIC THREADING RANGE (54) .......... .4 - 18.472 mm
TAILSTOCK SPINDLE TRAVEL ............. 7-7/8"
TAILSTOCK SPINDLE TAPER .............. #4MT
APPROXIMATE DIMENSIONS ............... 120"L X 40"W x 60"H
APPROX WEIGHT ........................ 3,250 LBS

EQUIPPED WITH:

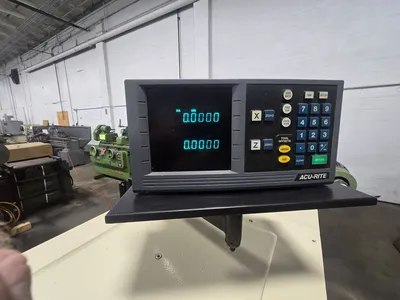

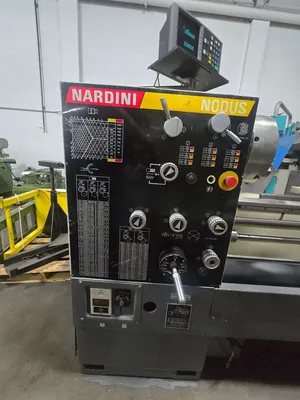

ACURITE DRO
INCH/METRIC THREADING

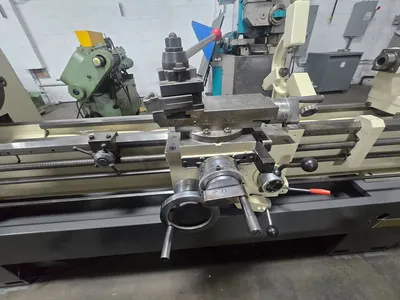

TAPER TURNING ATTACHMENT

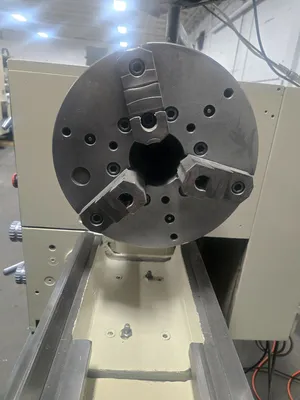

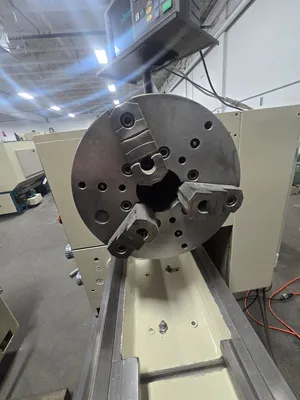

12” 3-JAW CHUCK

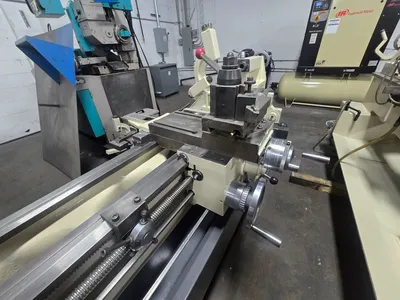

DORIAN QUICK CHANGE TOOLPOST
THREAD DIAL INDICATOR
COOLANT SYSTEM
REMOVEABLE CHIP PAN

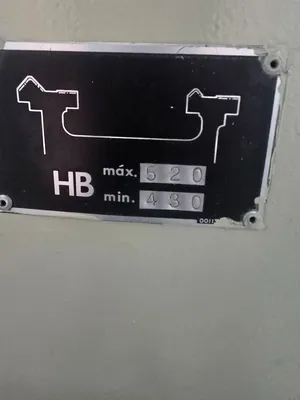

HARDENED & GROUND BEDWAYS
8 / 4 HORSE POWER TWO SPEED MAIN MOTOR wired 440V 3 Phase
