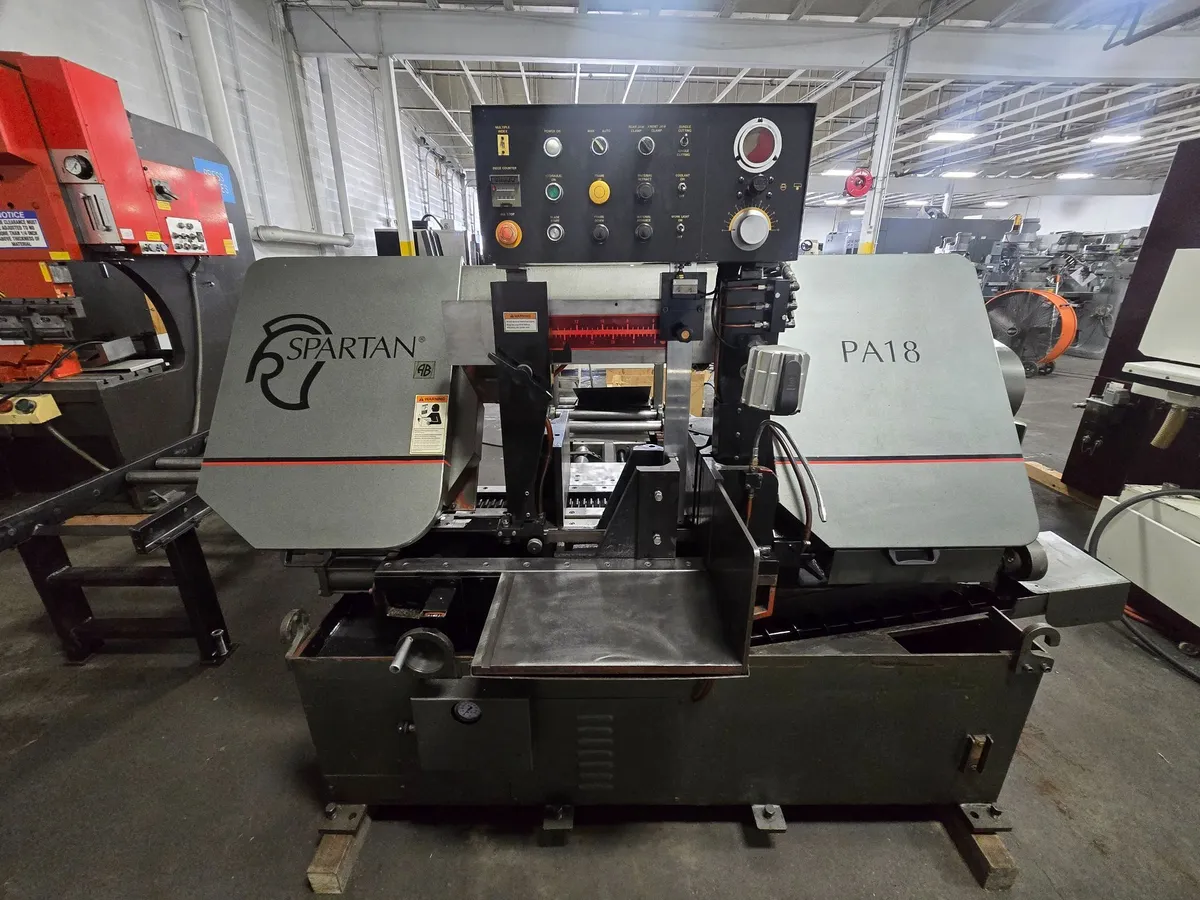

18" X 18" MARVEL SPARTAN PA18 AUTOMATIC HORIZONTAL BANDSAW

18" X 18" MARVEL SPARTAN AUTOMATIC HORIZONTAL BANDSAW
Machine Serial No.: FPA180173
Machine Model No.: PA18
Cutting Capacity: 18" High x 18" Wide or 18" Round Diameter
Blade Size: 1.5" x .050" x 15' 4" Long
Blade Speeds: Infinitely Variable 60 to 330 FPM
Distance from Floor to Work Surface of Saw: 27"
Work Load Capacity: 7,250 Lbs.
EQUIPPED WITH:
Automatic Shuttle Vise with 20" Maximum Stoke
Control Console with All Functions
Digital Blade Speed Read-Out
Digital Piece Counter
Multiple Vise Index Push Button
Adjustable Hydraulic Vise Pressure
Coolant Pump
5” Infeed Roller Table- 5’ L x 22” W x 29” H
7-1/2 HP Main Drive Motor
2 HP Hydraulic Motor
1/4 HP Coolant Motor
Wired 3 Phase, 60 Cycle, 230 Volts
Overall Size:
Saw: 100" L-R x 84" F-B x 71" H
Weight: 5,500 Lbs.
