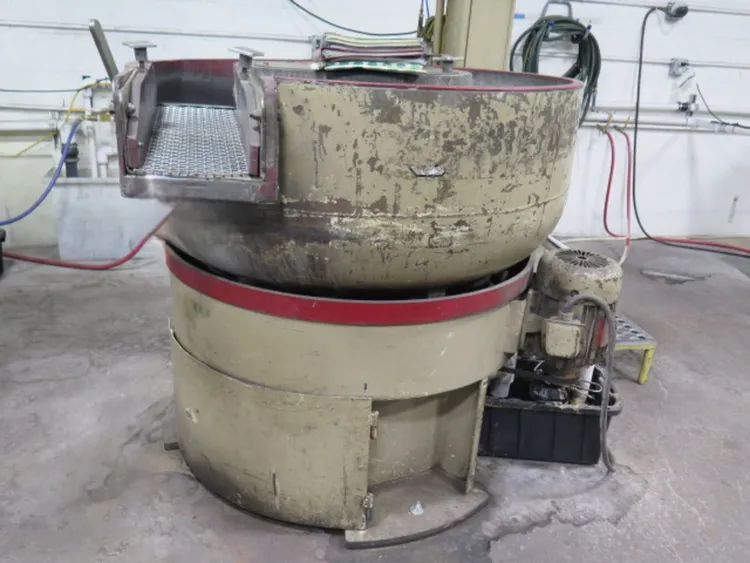

Roto-Finish Spiratron ER 0405MS Vibratory Finisher

Roto-Finish Spiratron ER 0405MS Vibratory Finisher
s/n ER-0405MS-87-A39

Maximum Working Capacity FT: 5
Overall Diameter: 48.7”
Height to Bowl: 46.5”
Process Channel Width: 10.2”
Screen Deck Height: 39”
Base Diameter: 47”
Drain Size: 4”
Number of Drains: 3
Motor HP: 3

Standard Operating Features
Unique Cartridge Drive System
Adjustable, Drop-on Eccentric Weight System
Continuously-Monitored Oil Recirculation
Built In Parts/Media Separation
Compound Flow-Through System
Multiple Pop in Drains
Compact Settling Tank
Dual Amplitude
Quick-Change, Straight-Line Screen Decks
Manual, Lever-Operated Gate

Design Features
Advanced Structural Design and Bowl Shape
Polyurethane Lining
Higher Amplitude
Low Profile
Lower Power Requirements

Flexibility
The Spiratron Extended Range provides mass finishing with a high degree of automation and a high degree of process flexibility and control. The ER Series covers the full line of mass finishing process, including ball burnishing, deburring, preplate finishing, and washing, for a wide range of part sizes and materials, including ferrous and nonferrous metals, plastics, wood, and ceramics.
