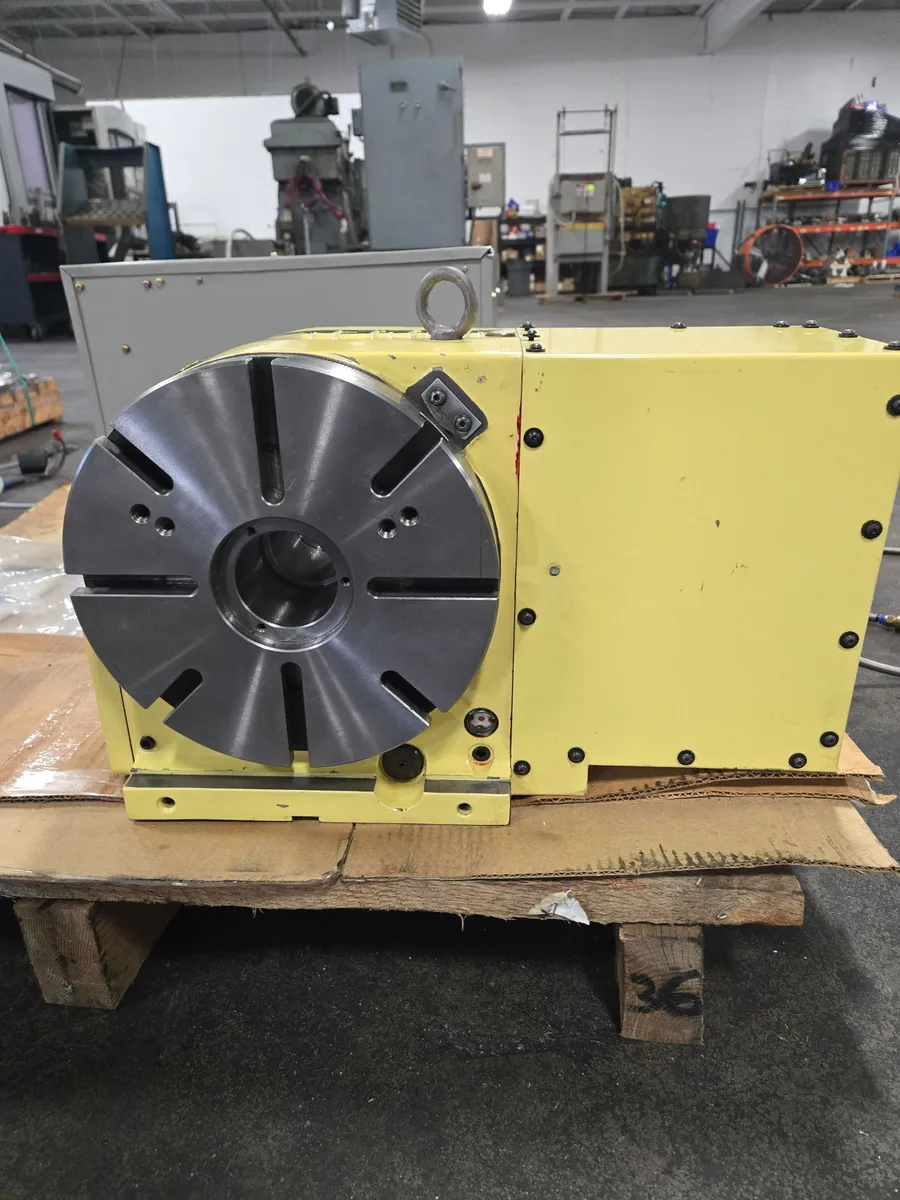

Nikken CNC-250FA 10 Inch Rotary Table w/ Nikken Z3BF Controller

Nikken CNC-250FA 10 Inch Rotary Table w/ Nikken Z3BF Controller

Specifications:
Table Diameter: 250 mm (10 inches)
Maximum Load Capacity:
Radial Load Capacity: 150 kg (330 lbs)
Axial Load Capacity: 100 kg (220 lbs)
Rotation Speed:
Max Speed: 80 RPM
Accuracy:
Indexing Accuracy: ±20 arcseconds
Repeatability: ±5 arcseconds
Drive Mechanism:
Gear Drive: High-precision worm gear drive for smooth rotation
Table Height: 140 mm (5.51 inches)
Rotation:
Continuous Rotation: 360° of continuous rotation
Indexing: Available for precise positioning in CNC applications
Motor Type: Typically driven by a servo motor (motor specifications depend on configuration)
Mounting: Horizontal or vertical mounting options
Weight: Approximately 40-50 kg (88-110 lbs), depending on configuration
Construction Material: High-strength, precision-cast iron for stability and durability
Compatibility: Compatible with a variety of CNC machines, including vertical and horizontal milling machines

The Nikken Z3BF controller is a CNC rotary table controller used for rotating and dividing workpieces during machining, with a 360-degree stepless operation and a chuck diameter of 130mm. It's manufactured by NEC Corporation and drives the rotary table with a stepping motor.
Here's a more detailed breakdown:
Function:
The Z3BF controller is designed to control a Nikken CNC rotary table, allowing for precise rotation and division of workpieces during machining processes.
Features:
360-degree Stepless Operation: The controller allows for continuous and precise rotation of the rotary table.
Chuck Diameter: The rotary table has a chuck diameter of 130mm.
Stepping Motor Drive: The rotary table is driven by a stepping motor controlled by the Z3BF controller.
Manufacturer:
NEC Corporation.
Applications:
The Z3BF controller is used for rotating and dividing workpieces for various machining applications.
Other Notes:
The controller can be used independently or integrated with the machine's main control system.
It includes a manual control unit, various control cables, a countertip, and a chuck wrench.
Accessories include dividing keys, clamping taper units, and a clamping nut.
