2017 Okamoto ACC-12-24SA 3-Axis Fully Automatic Precision Surface Grinder
Sold

2017 Okamoto ACC-12-24SA 3-Axis Fully Automatic Precision Surface Grinder

Grinders, Surface
Manufacturer:
OKAMOTO
Model:
ACC-12-24SA
Year:
2017
Stock #:
2074
Serial #:
93373
Country:
United States
The Okamoto ACC-12-24 is a next generation automatic type surface grinder that provides the reliability and simplicity of electronic control while still providing "hands-on" operation. It incorporates the proven design and construction features that have made Okamoto automatic surface grinders the preferred choice for users worldwide.
Table-W12"304.8 mm
Table-L24"609.6 mm
Horz/VertHorzHorz
Power5 hp3.7 kW
Grinding Wheel Width1.5"38.1 mm
Grinding Wheel Dia.12"304.8 mm
Dimensions107 in x 75 in x 70 in107 in x 75 in x 70 in
Weight5280 Lbs5280 Lbs

Specifications:
Max Longitudinal Travel: 29.5"
Max Cross Travel: 16"
Max Distance Under Wheel to Table Surface : 13.6"
Magnetic Chuck Size (WxL): 12" x 24"
Table Load Capacity (Includes Chuck Weight): 925 Lbs
T-Slots (No. x Width): 3 x 0.7”
Hydraulic Feed Rate: 1.0 - 82 ft/min
Hand Feed per Revolution: 1.85"
Intermittent Crossfeed:0.02 - 0.8"
Continuous Crossfeed: 4 - 40 ft/min
Crossfeed per Revolution :0.5/0.1/0.01"
Handfeed Dial Graduation: 0.005/0.001/0.0001"
Automatic Vertical Feed per Table Stroke: 0.00005 - 0.0015" (10 settings)
Rapid Feed Rate: 16 IPM
Manual Pulse Feed : (x.1)0.00001", (x1)0.0001", (x10)0.001"
Size (DxWxB): 12" x 1.5" x 5" (12 x 1.5 x 3 Avail.)
Speed:1,800 RPM
Grinding Wheel Spindle: 5 HP
Hydraulic Pump: 2 HP
Vertical Rapid Feed/Downfeed Power: 0.4kW AC Servo
Crossfeed Power: 0.75kW AC Servo
Power Supply: 7.5kVA
Floor Space: 107" x 75" x 70"H
Net Weight: 5,280 Lbs

Features:
3-Axis Fully Automatic
Built-In Chuck Controller
Crossfeed Manual Pulse Generator
Diamond Dressing Tool
Full Table Back Splashguard
Fully Automatic Cycle with Rough/Fine
Grinding and Spark-Out in 1 Set-Up
Grinding Wheel & Wheel Adapter
Incremental Infeed
Leveling Bolts with Plates
Okamoto MDI Controller
Overhead Wheel Dresser
Splash Cover with Coolant Nozzle & Pipe
Table Parks at Right Side for Safety
Vertical Digital Positioning Display
Vertical Manual Pulse Generator
Coolant System with Paper Filter

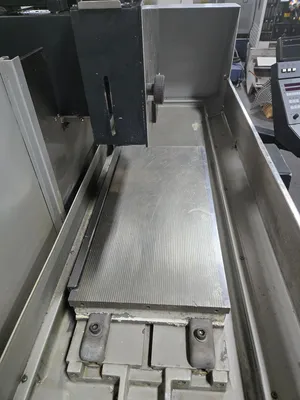

Walker Fine Division LBP Electromagnetic Chuck
Manuals
Cabinet with Extra Tooling
