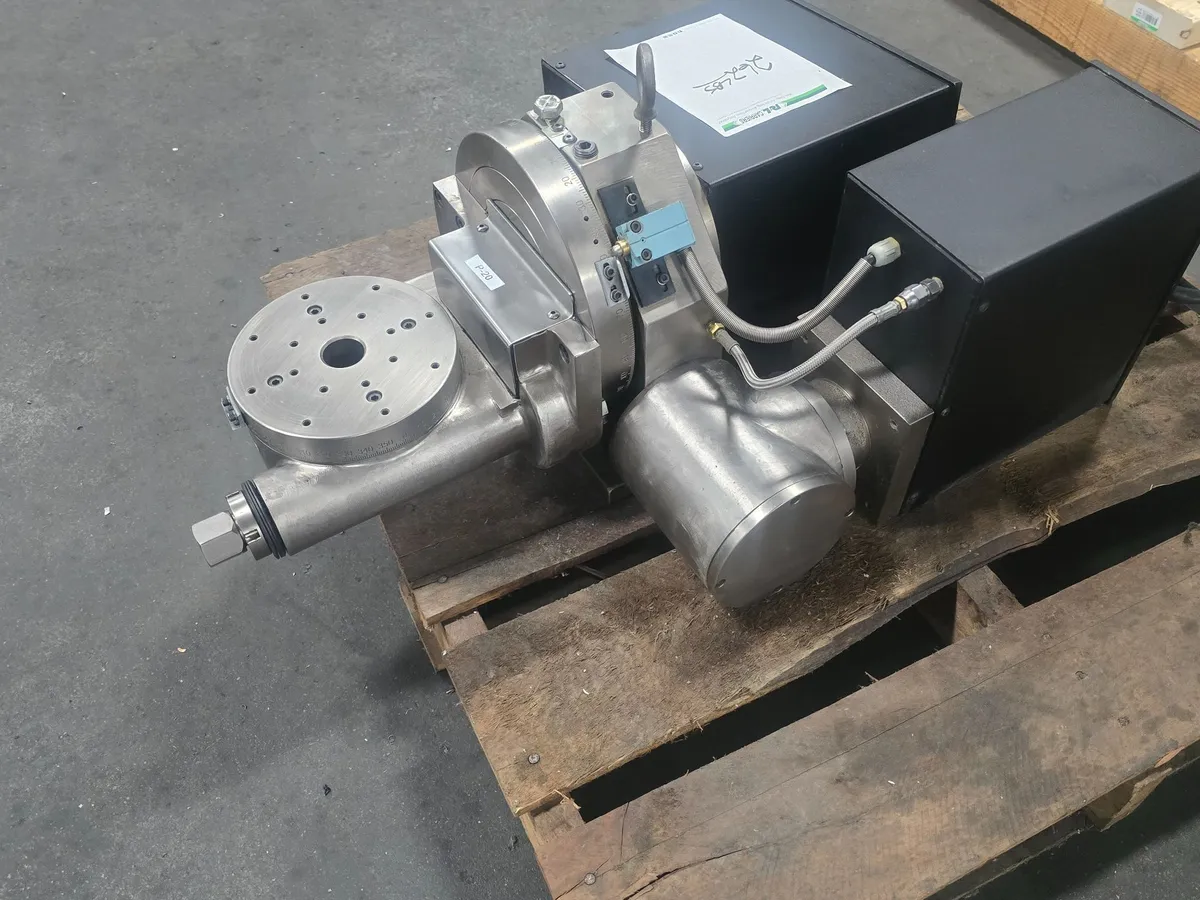

Troyke L6.5-C Rotary Axis Centered on Tilt Axis
Have one to sell?
$4,200.00 USD
ConditionUsed
1 available
Troyke L6.5-C Rotary Axis Centered on Tilt Axis
Troyke L Series indexing rotary and 5th axis tilting rotary tables range in size from 8" to 10" diameters. The L Series Rotary Tables are available as a manual or tilting CNC rotary table to be used on complex 5-axis machining applications. These heavy-duty tilting rotary tables are interfaced to the machine control as a rotary indexer or full 4th and 5th axis, and offer a variety of tooling and work holding options.
Specifications- Rotary Axis:
Turntable Diameter: 6.5”
Standard Thru Hole Diameter: 1.181”
Maximum Load Capacity: 100lbs
Standard Total Gear Ratio: 80:1
Max. Speed Range (STD Ratio): 0-10 RPM
Continuous Torque LBS-FT: 94
Programmable Resolution: .001 DEG.
STD. Total Angular Accuracy: +/- 60 SEC.
STD. Repeatability: +/- 20 SEC.
Unit Weight LBS: 400
Ship Weight LBS: 475
Specifications- Tilt Axis:
Standard Total Gear Ratio: 240:1
Max. Speed Range (STD Ratio): 0-2 RPM
Brake Method: Pneumatic
Brake Torque @ 100 PSI LBS-FT: 125
STD. Total Angular Accuracy: +/- 60 SEC.
STD Repeatability: +/- 30 SEC.
Maximum Tilt Axis Travel: +100/-20 DEG.
Standard L Series Rotary Table Features:
6.5" Rotary Table Diameters
Rotary and Tilt axis
Dual lead wormset simplifies backlash adjustment
C907 bronze wormgears and a hardened and ground worm running in a bath of oil
High precision spindle bearings
Turcite bearing surfaces
Internal pneumatic brake (Rotary & Tilt)
Precision ground surfaces
Zero return / home switches (Both Axis)
+/- overtravel limit switches (Tilt Axis)
