88 TON AIDA "NC1-80(1) HY-FLEX" SINGLE-CRANK GAP-FRAME PRESS
Have one to sell?
$19,500.00 USD
ConditionUsed
1 available
Boost your production with this used 88 Ton AIDA NC1-80(1) single-crank gap-frame press. Features include a 3.93" stroke, 10 HP power, 37.4" x 18.11" bed, variable SPM of 55–110, and air clutch for enhanced functionality. Located in Cincinnati.

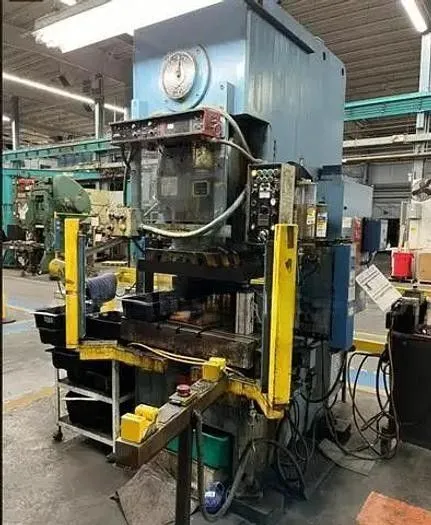

88 TON AIDA SINGLE-CRANK GAP-FRAME PRESS
Serial No 00208-6538, Model NC1-80(1)
EQUIPPED WITH:
Air Clutch & Brake
Hydraulic Overload Protection
CATALOG SPECIFICATIONS:
Tonnage Capacity, (Nominal) 80 TONS
Tonnage Capacity, (Short Tons) 88 TON
Stroke Length 3.93"
Slide Adjustment 3.14"
Slide Area, L-R x F-B 21.25" x 18.11"
Bolster Area, L-R x F-B 37.4" x 18.11"
Strokes per Minute, Variable 55 to 110 SPM
Motor Horsepower 10 HP
Floor Space Required, W x D 40" x 54"
F.O.B. OUR CINCINNATI WAREHOUSE
