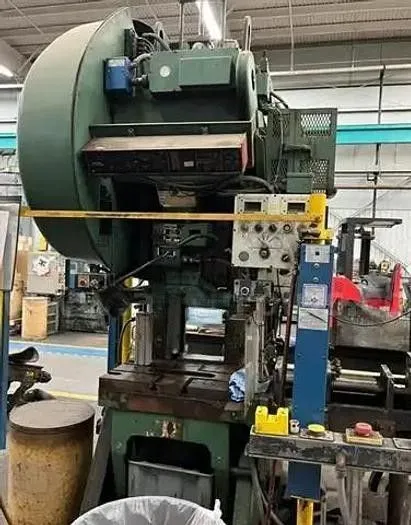

45 TON MINSTER "5" OBI FLYWHEEL POWER PRESS w/VARI-SPEED DRIVE
Have one to sell?
$12,500.00 USD
ConditionUsed
1 available
Used 45 Ton Minster #5 OBI Flywheel Power Press with vari-speed drive. Features: 45-ton capacity, 4" stroke, variable 90-180 SPM, 3 HP motor, air cushion, and lubrication system. Located at our Cincinnati warehouse.
CATALOG SPECIFICATIONS:
Tonnage Capacity 45 TON
Stroke Length 4"
Shut Height to Bed, (SDAU) 12.25"
Shut Height to Bolster, (SDAU) 10"
Ram Adjustment 2.5"
Ram Area, L-R x F-B 24" x 14"
Bed Area, L-R x F-B 28" x 18"
Bed Opening, L-R x F-B 16" x 12"
Throat Depth 9.5"
Strokes per Minute, Variable 90 to 180 SPM
Drive Motor, Horsepower 3 HP
Weight Approximately 10000 LBS
F.O.B. OUR CINCINNATI WAREHOUSE
45 TON MINSTER "5" O.B.I. FLYWHEEL PRESS
Serial No 5SS-25931, Model 5
EQUIPPED WITH:
Variable-Speed Drive
Flywheel Drive
5.7 Ton Air Cushion w/2" Stroke (100 PSI)
Recirculating Lubrication System
