| Rect-Cap (H) | 13" | 330.2 mm |
| Rect-Cap (W) | 14" | 355.6 mm |
| Rounds-Cap | 13" | 330.2 mm |
| Power | 5 hp | 3.7 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1.25" | 31.75 mm |
| Blade Thickness | 0.042" | 1.0668 mm |
| Blade Length | 162" | 4,114.8 mm |
| Dimensions | 10' L x 8' W | 10' L x 8' W |
| Weight | 4500 LBS | 4500 LBS |

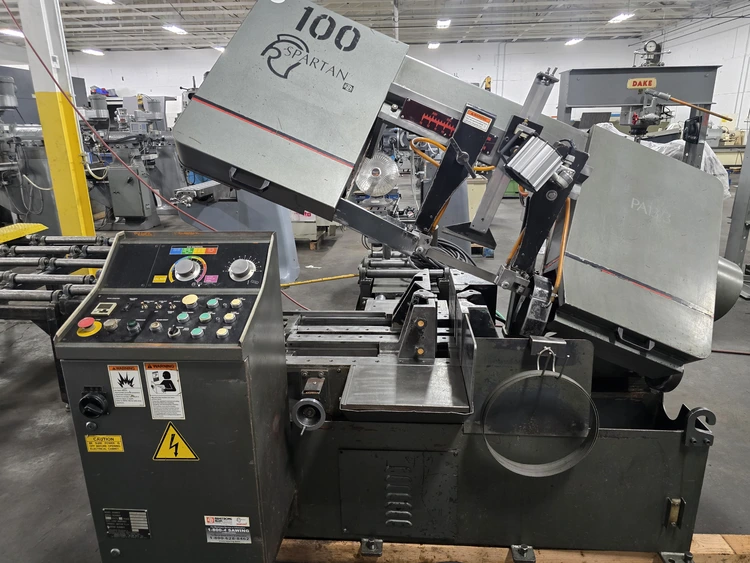

13" x 14" Marvel Spartan PA13/3 Horizontal Fully Automatic Bandsaw
DETAILED SPECIFICATION
Round Cutting Capacity: 13"
Rectangle Cutting Capacity: 13” X 14”
Saw Blade Dimensions: 13’6” X 1.25” X .042"
Blade Speeds: 60-330 SFPM
Blade Drive: 5HP
Hydraulic Pump: 1 HP
Coolant Pump: 1/8 HP
Table Height: 27-1/2”
Work Load Capacity: 6,250 Lbs.
Maximum Index Length: 20"
Weight (Approx.): 4,500 LBS
Currently Wired up at 460V 3 phase
EQUIPPED WITH
Hydraulic Blade Tension Control
Auto Feed Mechanism
Fast Approach
Coolant System
Infeed Conveyor: 20' L x 16" W
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
