45 TON MINSTER "59S" FIXED-BASE GAP FRAME PRESS w/SERVO-FEED
Have one to sell?
$19,500.00 USD
ConditionUsed
1 available

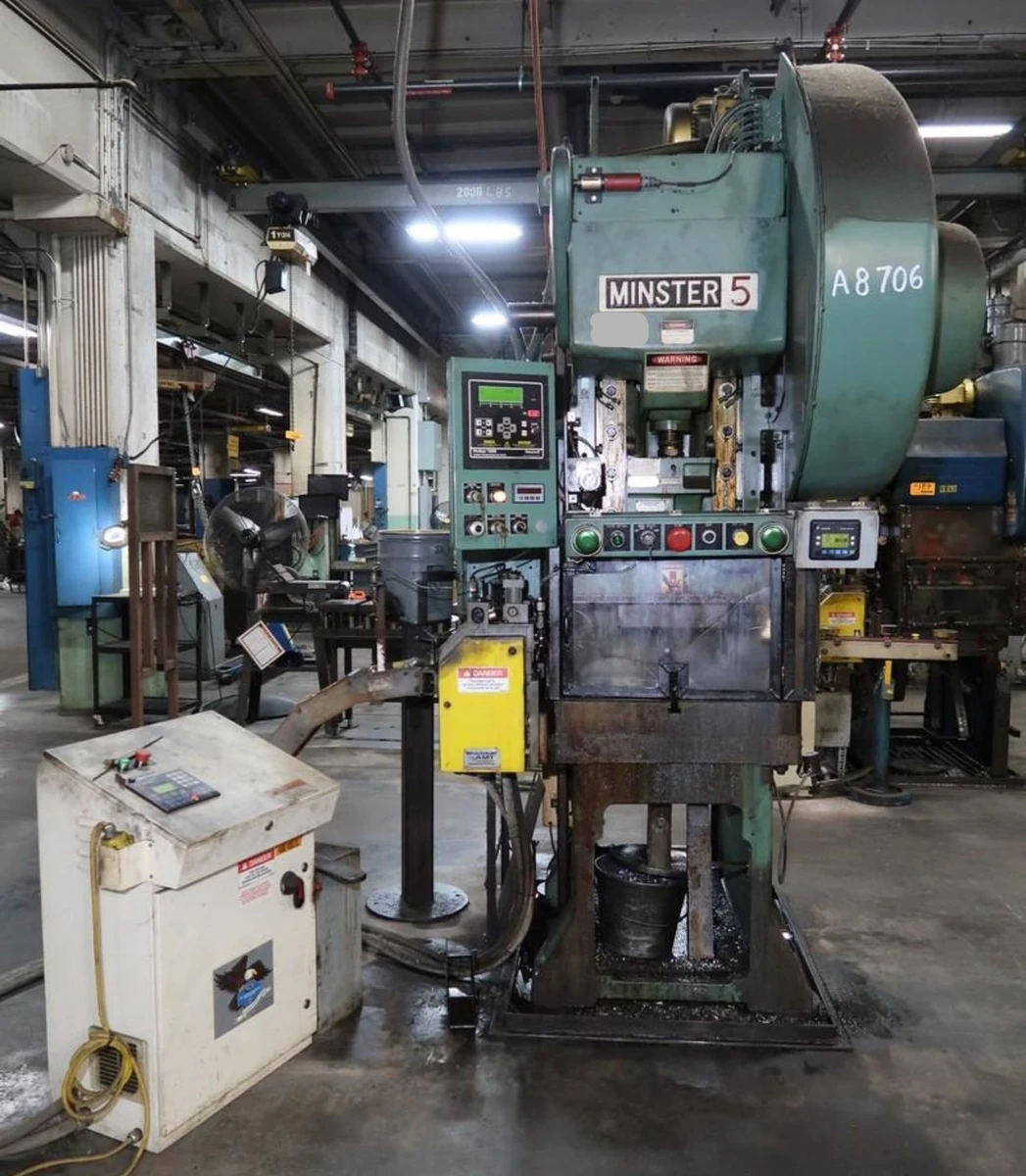

1994 45 Ton Minster 59S Fixed-Base Gap Frame Press, equipped with servo-feed, Minster air clutch & brake, dual palm buttons, and a micro PLC. With a 45-ton capacity, 3" stroke, and 120 SPM, this used press is ideal for robust fabricating needs.
45 TON MINSTER FIXED BASE GAP-FRAME PRESS
New 1994, Serial No 59S-FB-28298, Model 59S,
EQUIPPED WITH:
Minster Air Clutch & Brake
Dual Palm Buttons w/Allen Bradley Panelview 300
Micro PLC
Servo-Master Servo-Feed Feeding System
w/ProForm 1500 Controller
Cast Frame
CATALOG SPECIFICATIONS:
Tonnage Capacity, Heavy-Duty Rating 45 TON
Stroke Length 3"
Shut Height To Bed, (SDAU) 15.75"
Shut Height To Bolster, (SDAU) 12"
Slide Adjustment 2.5"
Slide Area, L-R x F-B 24" x 14"
Bed Area, L-R x F-B 28" x 18"
Bed Opening, L-R x F-B 16" x 12"
Diameter Intersecting Circle in Bed 14"
Bolster Area, L-R x F-B 28" x 18"
Bolster Thickness 3.75"
Width Of Opening In Back 13.5"
Throat Depth, Slide Center to Frame 9.5"
Strokes Per Minute 120 SPM
Motor Horsepower/RPM 5 HP/1200 RPM
Press Weight, Approximately 10000 LBS
