| Swing | 19.25" | 488.95 mm |
| Centers | 150" | 3,810 mm |
| Spindle Bore | 3.0625" | 77.788 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 1,600 RPM | 1,600 RPM |
| Swing Over Cross Slide | 12.25" | 311.15 mm |
| Dimensions | 217 x 50 | 217 x 50 |

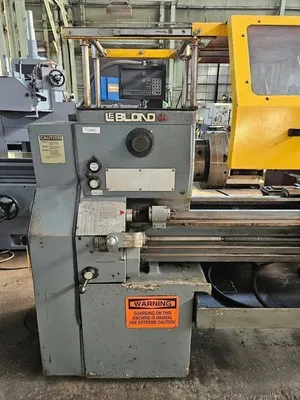

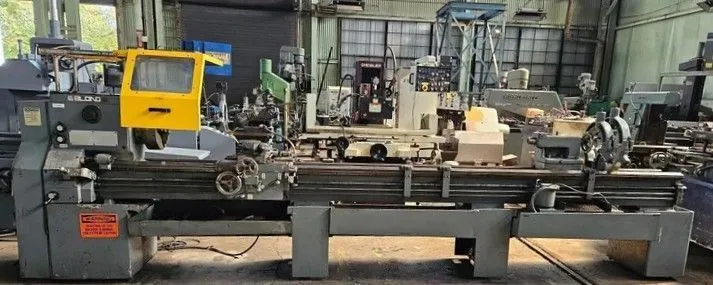

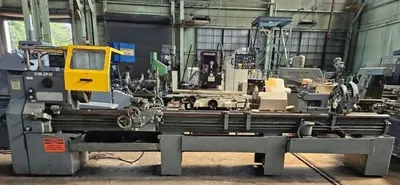

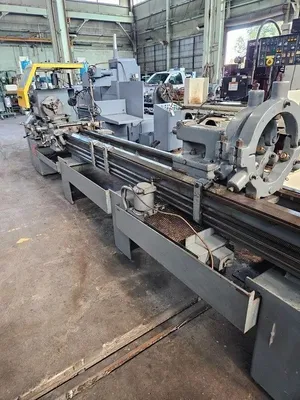

19" x 150" LEBLOND "REGAL" SERVO-SHIFT ENGINE
LATHE W/TAPER DIGITAL READOUTS INCH/METRIC
Serial No. 12E237, Model 19" Servo-Shift
EQUIPPED WITH:
Taper Attachment
Newall DP700 Digital Readouts

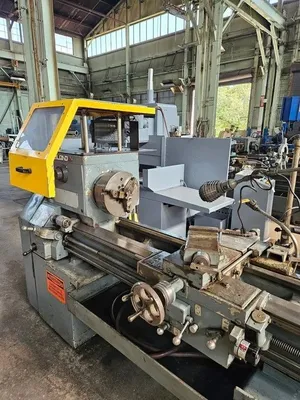

12" 3-Jaw Chuck

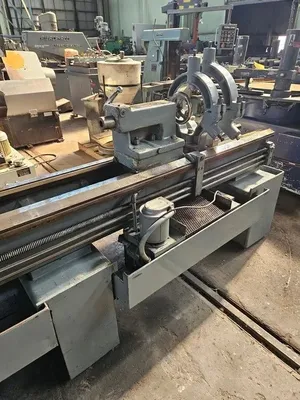

(2) Steady Rests
Servo Shift Hydraulic Shifting
Inch-Metric Threading Dials On Compound & Cross Slide
Hard Ways - Threading Dial

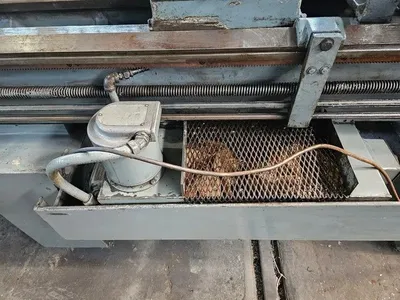

Chip Pan
CATALOG SPECIFICATIONS:
Swing Over Bed Ways, Rated 19"
Swing Over Bed Ways, Actual 19-1/4"
Swing Over Cross-Slide 12-1/4"
Distance Between Centers 150"
Hole Thru Spindle 3 1/16"
Spindle Nose L-2
(12) Spindle Speeds, Range 40 to 1600 RPM
(48) Longitudinal Carriage Feeds .0018 to .104 IPR
(48) Thread Changes, Range 2 to 112 TPI
(40) Metric Thread Changes, Range .25 to 14 MMPR
Cross-Slide Cross Feed 11-1/4"
Tailstock, Spindle Taper #4 MT
Tailstock, Spindle Diameter 2-7/16"
Tailstock, Spindle Travel 7"
Motor, Horsepower 10 HP
Overall Dimensions, L x D 217" x 50"
F.O.B. OUR WAREHOUSE IN CINCINNATI
