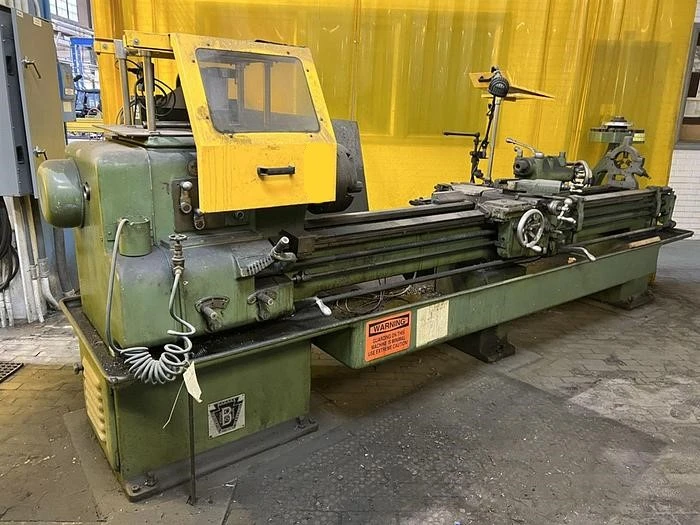

16.5" X 102" LEBLOND "14 HEAVY-DUTY" ENGINE LATHE w/TAPER, NEWALL DRO
Have one to sell?
ConditionUsed
1 available
$8,950.00 USD
14"/16.5" x 102" LEBLOND "HEAVY-DUTY" ENGINE LATHE w/TAPER ATTACHMENT & DIGITAL READOUTS
Series "14 HEAVY-DUTY". A robust choice for precision machining.
14"/16.5" x 102" LEBLOND "HEAVY-DUTY" ENGINE LATHE
w/TAPER ATTACHMENT & DIGITAL READOUTS
Series "14 HEAVY-DUTY"
EQUIPPED WITH:
Collet Chuck w/Collets
Taper Attachment
12" 3-Jaw Chuck
Steady Rest - Follow Rest
Power Rapid Traverse
Hard Ways
Threading Dial
CATALOG SPECIFICATIONS:
Hole Thru Spindle 1.34"
Swing Over Bed Ways, Rated 14"
Swing Over Bed Ways, Actual 16.5"
Swing Over Cross-Slide 9.75"
Distance Between Centers 102"
Compound-Rest Travel 2.875"
Tailstock, Spindle Diameter 2.625"
Tailstock, Spindle Travel 10"
(24) Spindle Speeds, Range 25 to 1250 RPM
Carriage Longitudinal Feeds .0021 to .126 IPR
Thread Changes, Range 2 to 120 TPI
Weight, Approximately 6500 LBS
F.O.B. OUR WAREHOUSE
14"/16.5" x 102" LEBLOND "HEAVY-DUTY" ENGINE LATHE w/TAPER ATTACHMENT & DIGITAL READOUTS
Series "14 HEAVY-DUTY". A robust choice for precision machining.
Imperial
| Swing | 16.5" |
| Centers | 102" |
| Spindle Bore | 1.34" |
| RPM | 1,250 RPM |
| Swing Over Cross Slide | 9.75" |
| Weight | 6500 LBS |
14"/16.5" x 102" LEBLOND "HEAVY-DUTY" ENGINE LATHE
w/TAPER ATTACHMENT & DIGITAL READOUTS
Series "14 HEAVY-DUTY"
EQUIPPED WITH:
Collet Chuck w/Collets
Taper Attachment
12" 3-Jaw Chuck
Steady Rest - Follow Rest
Power Rapid Traverse
Hard Ways
Threading Dial
CATALOG SPECIFICATIONS:
Hole Thru Spindle 1.34"
Swing Over Bed Ways, Rated 14"
Swing Over Bed Ways, Actual 16.5"
Swing Over Cross-Slide 9.75"
Distance Between Centers 102"
Compound-Rest Travel 2.875"
Tailstock, Spindle Diameter 2.625"
Tailstock, Spindle Travel 10"
(24) Spindle Speeds, Range 25 to 1250 RPM
Carriage Longitudinal Feeds .0021 to .126 IPR
Thread Changes, Range 2 to 120 TPI
Weight, Approximately 6500 LBS
F.O.B. OUR WAREHOUSE
