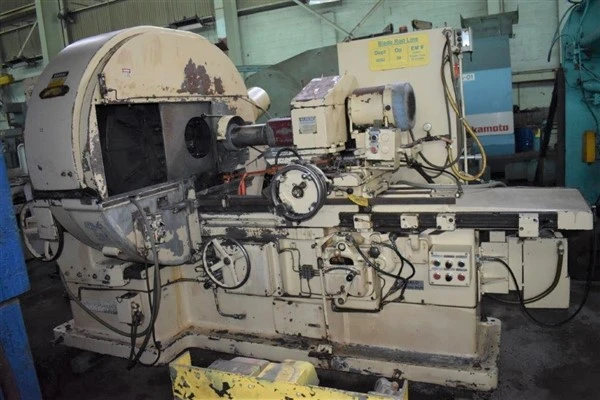

CINCINNATI-MILACRON/HEALD #174 ADJUSTABLE GAP-TYPE “PLAIN” INTERNAL GRINDER

#174 CINCINNATI-MILACRON/HEALD ADJUSTABLE
GAP-TYPE “PLAIN” INTERNAL GRINDER
SERIAL NO 50350, MODEL 174, SERIES “PLAIN”
EQUIPPED WITH:
4500 RPM HEALD “RED HEAD” GRINDING WHEEL SPINDLE
HYDRAULICALLY OPERATED WHEEL GUARD
42″ FACE PLATE
TABLE MOUNTED GRINDING WHEEL DRESSER
BARNES COOLANT FILTRATION SYSTEM
AUTOMATIC LUBRICATIION SYSTEM
CATALOG SPECIFICATIONS:
SWING INSIDE COOLANT SPLASH GUARD 42″
DIAMETER HOLE GROUND, MAXIMUM 20″
TABLE STROKE, MAXIMUM 22″
GRINDING STROKE, MINIMUM 5/8″
GRINDING STROKE, MAXIMUM 13″
GAP ADJUSTMENT (STANDARD), RANGE 11.5″ TO 20″
HOLE THRU WORKHEAD SPINDLE, DIAMETER 1.68″
WORKHEAD SPINDLE FLANGE, DIAMETER 12″
WORKHEAD SPINDLE SPEEDS, RANGE 41 TO 123 RPM
GRINDING TABLE SPEEDS, INFINITE 0 TO 18 FPM
WHEELHEAD SPINDLE MOTOR, HORSEPOWER 7.5 HP/7500 RPM
WORKHEAD CHUCK MOTOR, HORSEPOWER 5 HP/1150 RPM
ELECTRICAL SYSTEM 220-440/3/60
FLOOR SPACE REQUIRED, W X D 139″ X 82″
WEIGHT, APPROXIMATELY 17000 LBS
WORK REQUIRING LARGE SWING, AWKWARD WORKPIECES,
LONG BORES, ADJUSTABLE GAPS AND SWINGS
Excellent Condition
