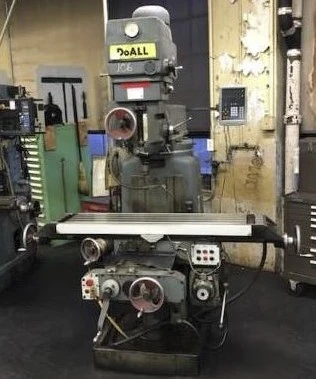

FV-4V DOALL HEAVY-DUTY VERTICAL MILL w/Newall DRO, P/F to Table, Quill, Saddle, And Knee, 4 HP Variable Speed

#FV-4V DOALL HEAVY-DUTY VERTICAL MILL w/DIGITAL READOUT
Serial No. 05412742, Model FV-4V, Series 14562-4
EQUIPPED WITH:
C80 Newall Digital Readouts
4 HP Spindle Head Motor
NS40 Taper Spindle
Infinitely Variable Speed Spindle
Power Feed to Table, Quill, Saddle, And Knee
CATALOG SPECIFICATIONS:
Table Working Surface, W x L
12″ x 52.75″
Table Longitudinal Travel (X-Axis)
31.5″
Saddle Cross Travel (Y-Axis)
15.75″
Knee Vertical Travel (Z-Axis)
17.62″
Quill Travel
6″
Spindle Nose to Table, Minimum
0″
Spindle Nose to Table, Maximum
17.625″
Throat Distance, Minimum
6.31″
Throat Distance, Maximum
31.5″
Workpiece Load Capacity, Maximum
1500 LBS
Quill Diameter
3.375″
Spindle Taper
#NS40
Spindle-Head Longitudinal Swivel
180-DEGREES
Spindle Speeds, Infinitely Variable
60 to 4150 RPM
Quill Feeds, Range
.003 to .006 IPR
Longitudinal and Cross Feeds
1/2 to 20.875 IPM
Vertical Knee Feeds, Range
1/4 to 10.5 IPM
Spindle Motor, Horsepower
4 HP
Feed Motor, Horsepower
1.5 HP
Weight, Approximately
4900 LBS
