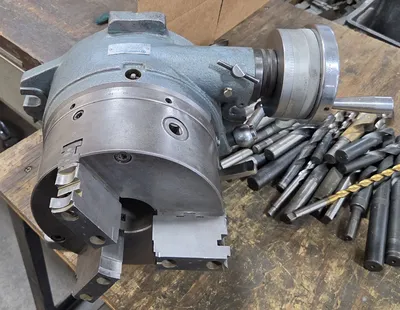

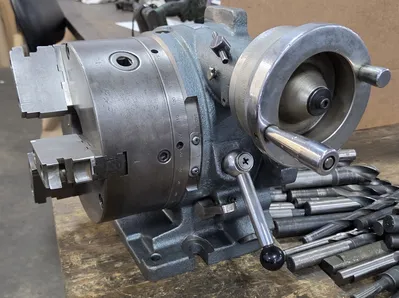

YUASA 550-008 SUPER ACCU-DEX Rotary Index 8"
Have one to sell?
ConditionUsed
1 available
$1,795.00 USD
YUASA 550-008 SUPER ACCU-DEX Rotary Index 8"
USED

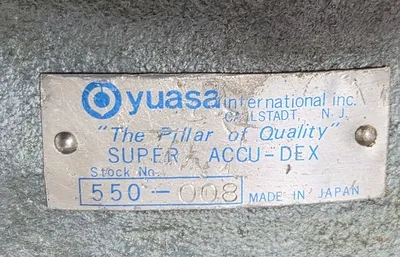

Brand: Yuasa
Model: 550-008

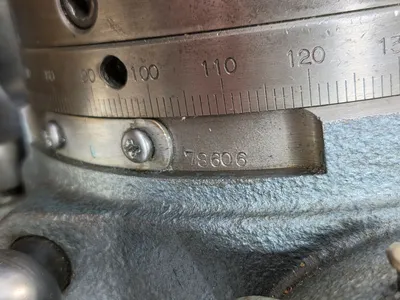

Serial Number: 78606
Comes with:

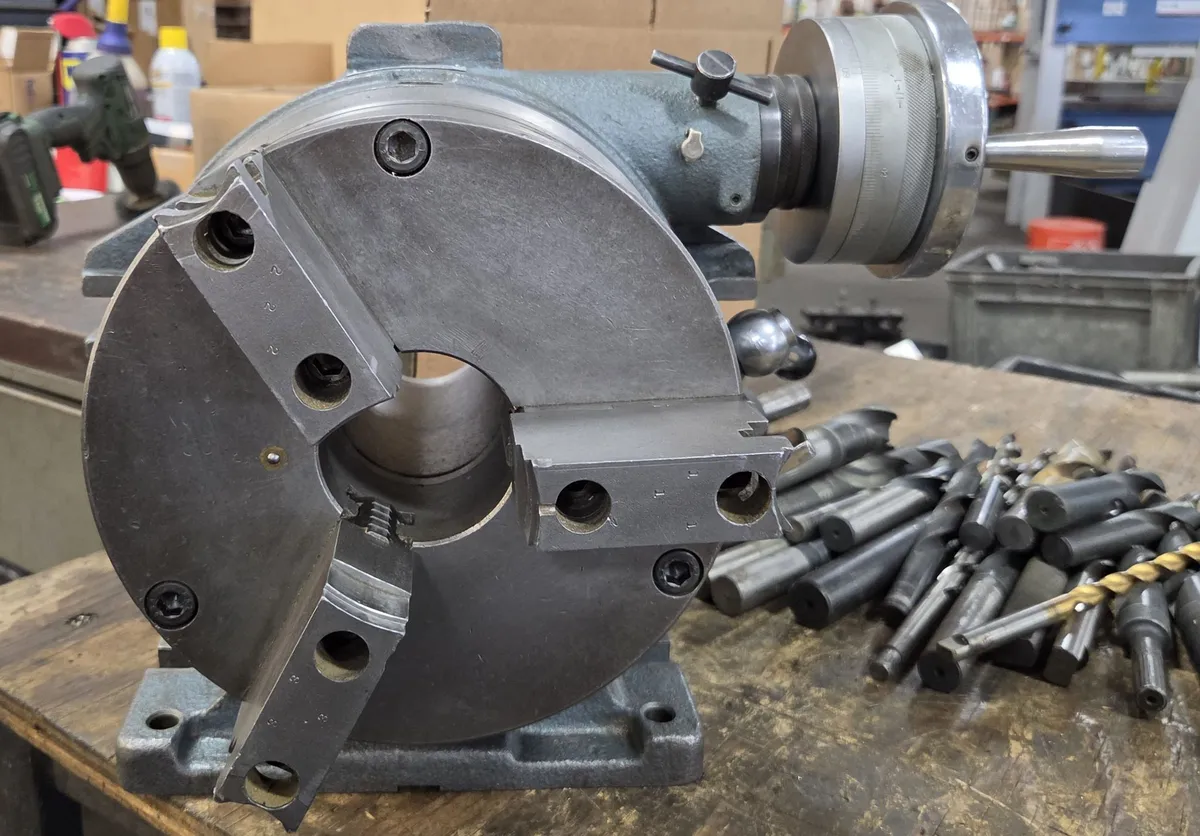

1 Chuck, 3 Jaw
Overall Diameter: 8”
Center Hole: 2.48in / 63mm

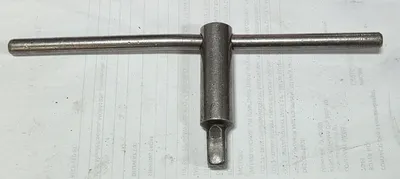

Chuck Key
Centerline Height: ~5.90" to 5.91"
Maximum individual spacing error 25 seconds
Vernier reading 10 seconds
Base to chuck squareness (90 deg) 0.0008" (0.02mm)
Base parallelism 0.0004" (0.01mm)
Mounting flange concentricity 0.0008" (0.02mm)
Chuck concentricity 0.0005" (0.012mm)
Overall Dimensions:
Overall Length (OAL): 9.71"
Overall Width (OAW): 12.20"
Overall Height (OAH): 11.22"
YUASA 550-008 SUPER ACCU-DEX Rotary Index 8"
USED
Brand: Yuasa
Model: 550-008
Serial Number: 78606
Comes with:
1 Chuck, 3 Jaw
Overall Diameter: 8”
Center Hole: 2.48in / 63mm
Chuck Key
Centerline Height: ~5.90" to 5.91"
Maximum individual spacing error 25 seconds
Vernier reading 10 seconds
Base to chuck squareness (90 deg) 0.0008" (0.02mm)
Base parallelism 0.0004" (0.01mm)
Mounting flange concentricity 0.0008" (0.02mm)
Chuck concentricity 0.0005" (0.012mm)
Overall Dimensions:
Overall Length (OAL): 9.71"
Overall Width (OAW): 12.20"
Overall Height (OAH): 11.22"
