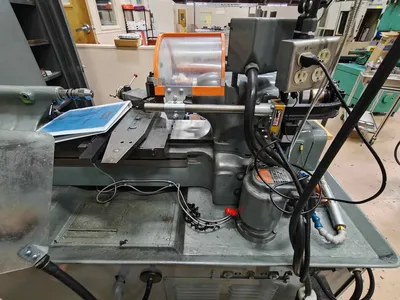

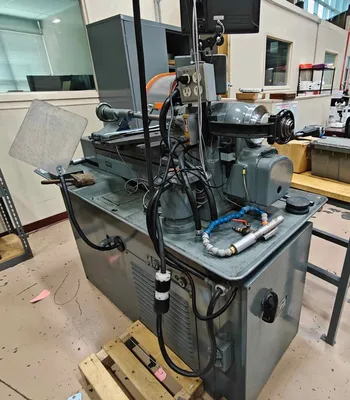

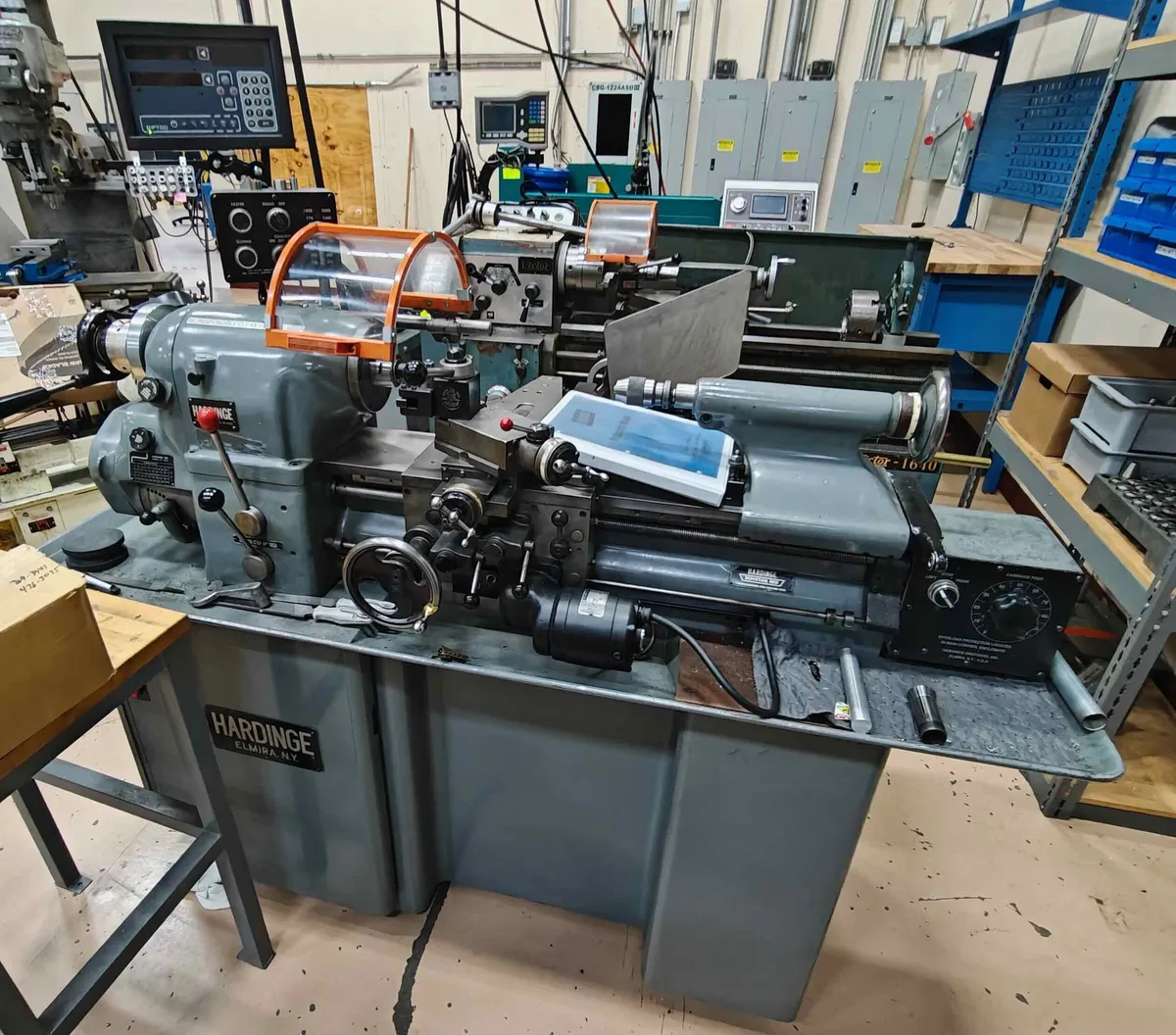

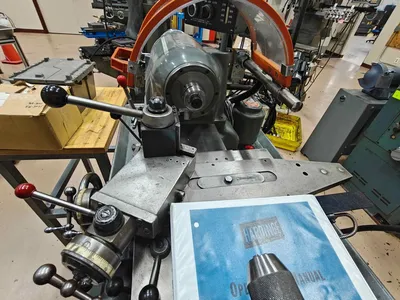

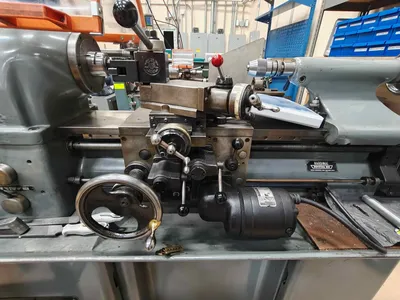

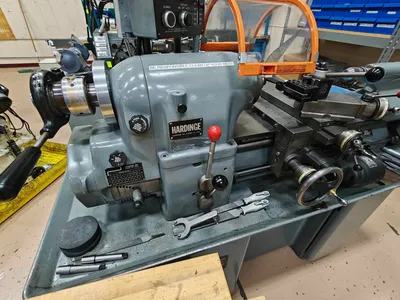

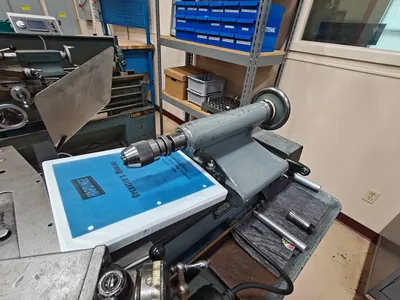

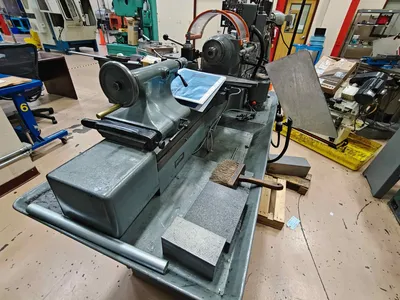

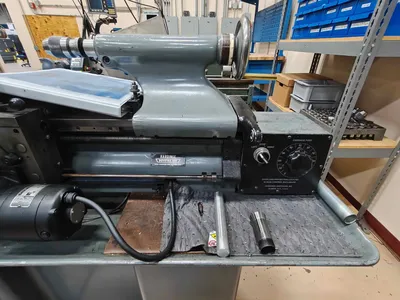

11" x 18" HARDINGE HLV-H WIDE BED “SUPER PRECISION” LATHE w/DRO
Have one to sell?
ConditionUsed
1 available
$12,950.00 USD
Hardinge HLV-H Wide Bed Tool Room Lathe

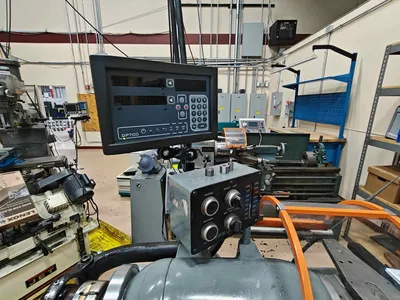

Newall DP700 Digital Read Out
SPEC SHEET
Max Swing Over Bed: 11″
Max Swing Over Carriage: 9″
Max Swing Over Cross Slide: 5.75″
Compound Slide Travel: 3″
DISTANCE BETWEEN CENTERS
– Tailstock Flush: 18″
– Tailstock Overhung: 20″
Power Feed Range: 0.25 IPM – 7 PM
Longitudinal Feed Rate: 0.31 IPM – 7 IPM
Cross Feed Rate: 0.18 IPM to 4 IPM
Tailstock Spindle Travel: 3.75″
Tailstock Spindle Taper: No. 2 Morse
Spindle Bore: 1.25″
1.5 HP Variable speed,
Spindle Speeds (Variable): 125 – 3000 RPM
Spindle Nose: Hardinge Tapered
Power 440 Volts / 60 Hertz / 3 Phase ,
Dimensions 6 Ft. x 3 Ft. x 5 Ft.
Imperial
| Swing | 11" |
| Centers | 18" |
| Spindle Bore | 1.25" |
| Power | 1.5 hp |
| RPM | 3,000 RPM |
| Swing Over Cross Slide | 5.75" |
| Dimensions | 6 ft x 3 ft x 5 ft |
Hardinge HLV-H Wide Bed Tool Room Lathe
Newall DP700 Digital Read Out
SPEC SHEET
Max Swing Over Bed: 11″
Max Swing Over Carriage: 9″
Max Swing Over Cross Slide: 5.75″
Compound Slide Travel: 3″
DISTANCE BETWEEN CENTERS
– Tailstock Flush: 18″
– Tailstock Overhung: 20″
Power Feed Range: 0.25 IPM – 7 PM
Longitudinal Feed Rate: 0.31 IPM – 7 IPM
Cross Feed Rate: 0.18 IPM to 4 IPM
Tailstock Spindle Travel: 3.75″
Tailstock Spindle Taper: No. 2 Morse
Spindle Bore: 1.25″
1.5 HP Variable speed,
Spindle Speeds (Variable): 125 – 3000 RPM
Spindle Nose: Hardinge Tapered
Power 440 Volts / 60 Hertz / 3 Phase ,
Dimensions 6 Ft. x 3 Ft. x 5 Ft.
