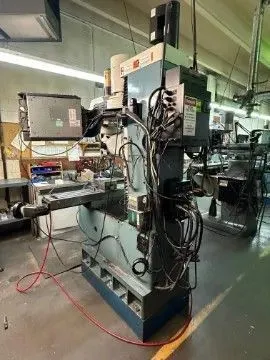

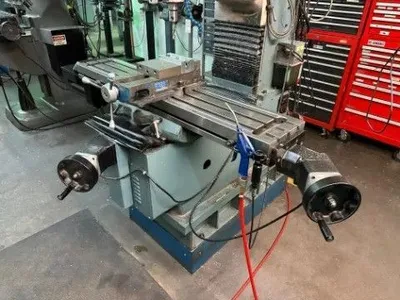

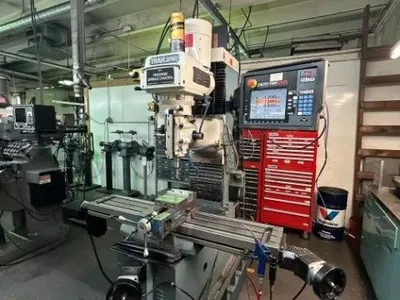

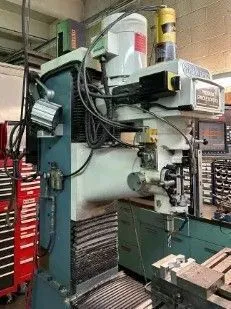

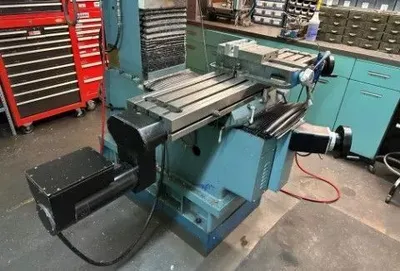

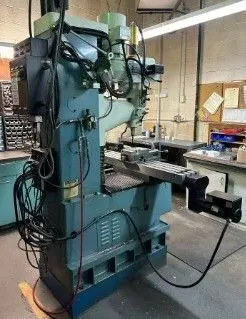

SWI TRAK DPM SX2P 3 Axis CNC Vertical Bed Mill w/3 HP, PDB, 9" x 49" Table, Kurt Vice

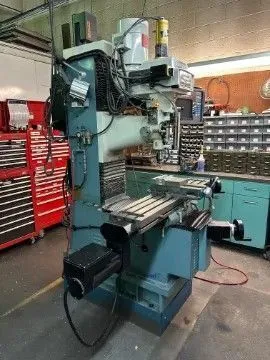

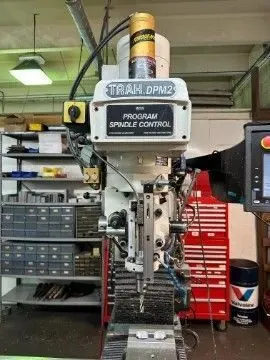

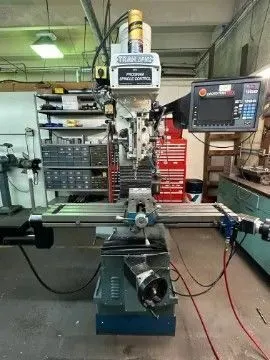

SOUTHWESTERN INDUSTRIES TRAK DPM SX2P 3-AXIS CNC BED MILL
KURT VISE,
MAXI TORQUE-RITE POWER DRAWBAR,

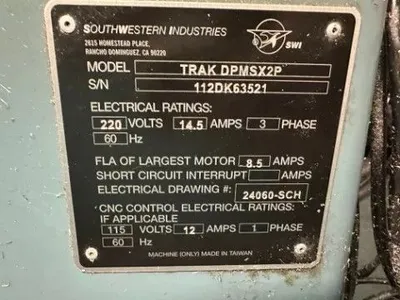

SN: 112DK63521
SPECIFICATIONS:
TABLE SIZE: 49" X 9"
TRAVEL (X, Y, Z AXIS): 32" X 16" X 27"
T-SLOTS (NUMBER X WIDTH X PITCH): 3 X .63" X 2.5"
QUILL DIAMETER: 3 3/8"
MAXIMUM QUILL TRAVEL: 5"
SPINDLE TAPER: R8
SPINDLE SPEED RANGE RPM - VARISPEED DRIVE: 70-4200
SPINDLE CENTER TO COLUMN FACE: 18"
SPINDLE MOTOR POWER: 3 HP
POWER REQUIREMENTS, CONTROL: 110V; 1P; 8A
POWER REQUIREMENTS, MACHINE WITH VARI-SPEED HEAD: 220/440V; 3P; 8.5/4.25A
POWER REQUIREMENTS, MACHINE WITH OPTIONAL E HEAD: 220V; 3P; 11A
MAXIMUM WEIGHT OF WORKPIECE: 1320 LBS.
HEIGHT OF TABLE FROM BOTTOM OF BED: 33"
MAX SPINDLE NOSE TO TABLE: 27"
MIN HEIGHT: 90"
MAX HEIGHT: 98"
WIDTH OF MACHINE INCLUDING TABLE: 70"
LENGTH WITH ELECTRIC BOX DOOR CLOSED: 64"
OVERALL WIDTH INCLUDING FULL TABLE TRAVERSE: 104"
OVERALL LENGTH WITH ELECTRICAL DOOR OPEN: 72"
FOOTPRINT OF MACHINE: 23" X 40"
WEIGHT NET / SHIPPING: 3200 / 3500 LBS.
RAPID TRAVERSE X, Y, Z: 150 IPM

MAXIMUM WORK CAPACITIES IN MILD STEEL:
DRILLING MAX CAPACITY - VARISPEED HEAD: 1" DIA
MILLING MAX CAPACITY - VARISPEED HEAD: 2 INCH³/MIN
TAPPING MAX CAPACITY - VARISPEED HEAD: 5/8"
DRILLING MAX CAPACITY - OPTIONAL E HEAD: 3 INCH³/MIN
MILLING MAX CAPACITY - OPTIONAL E HEAD: 3/4 - 10

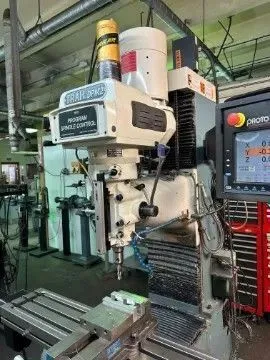

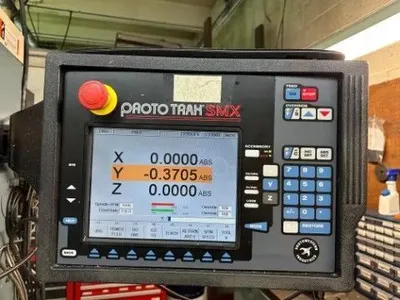

CONTROL SPECIFICATIONS (PROTOTRAK SMX CNC):
- 2 OR 3-AXIS CNC, 3-AXIS DRO
- REAL HANDWHEELS FOR MANUAL OPERATION
- 10.4" COLOR ACTIVE-MATRIX SCREEN
- INDUSTRIAL-GRADE INTEL PROCESSOR
- 256 MB RAM
- P/S 2 KEYBOARD CONNECTOR
- 2 USB CONNECTORS
- OVERRIDE OF PROGRAM FEEDRATE
- LED STATUS LIGHTS BUILT INTO DISPLAY
- TEAC FLOPPY DRIVE
- ELECTRICAL RATINGS: 220V, 11 AMPS, 3 PHASE, 60 HZ

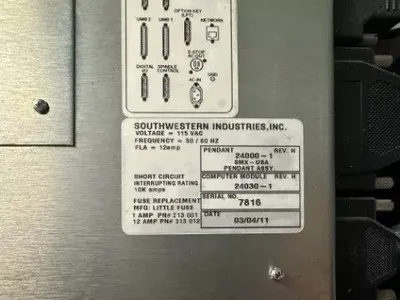

- CONTROL RATINGS: 115V, 12 AMPS, 1 PHASE, 60 HZ

EQUIPPED WITH:
PROTOTRAK SMX 3-AXIS CNC CONTROL

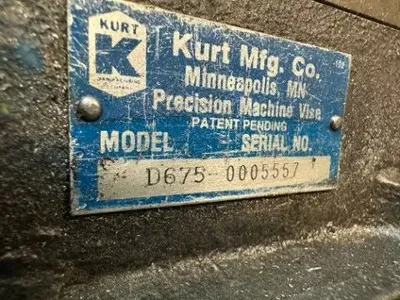

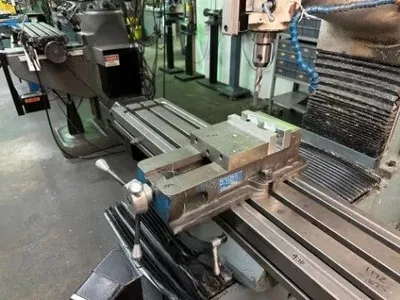

KURT D675 ANGLOCK PRECISION VISE

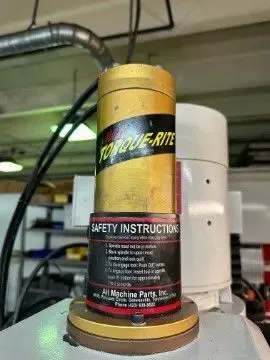

MAXI TORQUE-RITE POWER DRAWBAR
WAY COVERS
