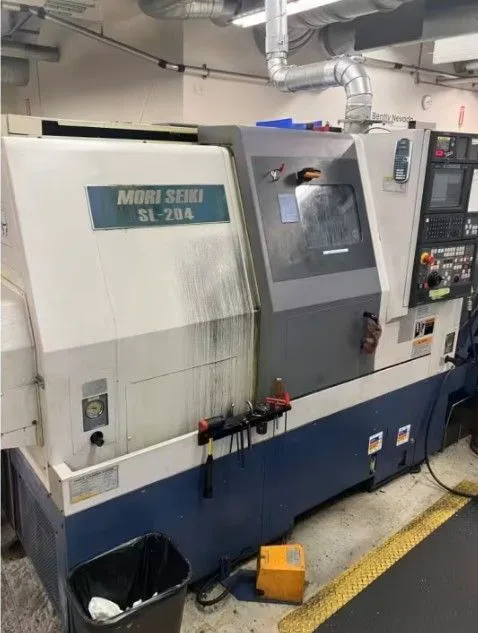

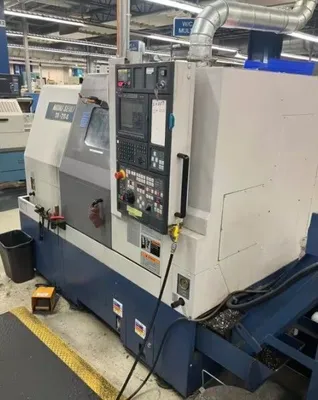

Mori-Seiki SL-204MC 4-axis CNC Turning & Live-Tooling Center
Have one to sell?
ConditionUsed
1 available
$39,500.00 USD
Capacity & Dimensions
• Chuck Size: 8 inches
• Max Swing: 26.8 inches (680 mm)
• Max Turning Diameter: 15.3 inches
• Max Turning Length / Distance Between Centers: 19.5 inches (approx. 500–520 mm)
• Bar Capacity: 2.0 to 2.5 inches (approx. 51–63 mm)
• Machine Dimensions: Approx. 92" x 74" x 73" (2335 x 1880 x 1850 mm)
• Machine Weight: Approx. 10,000 to 11,000 lbs (4.5 tons)
Spindle & Drive
• Spindle Speed: 45 - 4,500 RPM
• Spindle Motor Power: 11 kW to 20 HP (depending on configuration)
• Spindle Bore Diameter: 2.5 inches (55–63 mm)
• Spindle Nose: A2-6
Travel & Axes
• X-Axis Travel: 9.25 inches (235 mm)
• Z-Axis Travel: 19.5 inches (520 mm)
• C-Axis Indexing: Standard with live tooling capabilities
• Tailstock: Equipped with MT4 center taper and hydraulic adjustment
Turret & Tooling
• Turret Stations: 12 positions
• Live Tooling: Driven tool capability integrated with C-axis
• Turret Index Time: 0.2 seconds

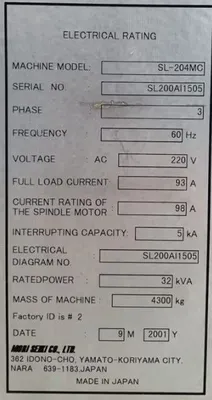

Control & Electrical
• CNC Control: Mitsubishi MSG-805
• Power Requirement: 220V / 3-Phase
Imperial
| Swing | 26.8" |
| Machining Length | 24.3" |
| # Axis | 4 |
| Chuck Size | 8" |
| Bar Capacity | 2.5" |
| Power | 20 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 15.3" |
| Tailstock | 'Yes' |
| Live Tooling | 'Yes' |
| Sub Spindle | 'No' |
| Control | CNC (Mitsubishi MSG-805) |
| Dimensions | 92" x 74" x 73" |
| Weight | 11000 |
Capacity & Dimensions
• Chuck Size: 8 inches
• Max Swing: 26.8 inches (680 mm)
• Max Turning Diameter: 15.3 inches
• Max Turning Length / Distance Between Centers: 19.5 inches (approx. 500–520 mm)
• Bar Capacity: 2.0 to 2.5 inches (approx. 51–63 mm)
• Machine Dimensions: Approx. 92" x 74" x 73" (2335 x 1880 x 1850 mm)
• Machine Weight: Approx. 10,000 to 11,000 lbs (4.5 tons)
Spindle & Drive
• Spindle Speed: 45 - 4,500 RPM
• Spindle Motor Power: 11 kW to 20 HP (depending on configuration)
• Spindle Bore Diameter: 2.5 inches (55–63 mm)
• Spindle Nose: A2-6
Travel & Axes
• X-Axis Travel: 9.25 inches (235 mm)
• Z-Axis Travel: 19.5 inches (520 mm)
• C-Axis Indexing: Standard with live tooling capabilities
• Tailstock: Equipped with MT4 center taper and hydraulic adjustment
Turret & Tooling
• Turret Stations: 12 positions
• Live Tooling: Driven tool capability integrated with C-axis
• Turret Index Time: 0.2 seconds
Control & Electrical
• CNC Control: Mitsubishi MSG-805
• Power Requirement: 220V / 3-Phase
