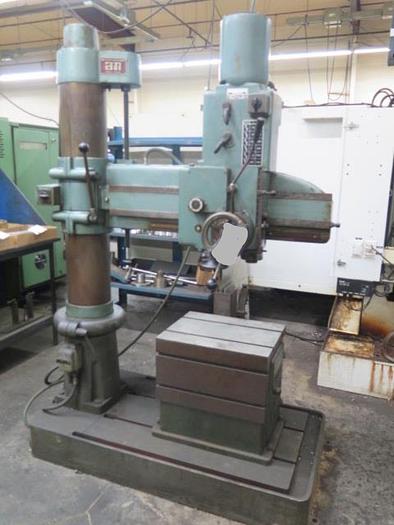

ARBOGA 40” x 9” Radial Arm Drill RLM3512

ARBOGA 40” x 9” Radial Arm Drill RLM3512

Max. Distance Spindle Center to Column Face: 39 3/4"

Min. Distance Spindle Center to Column Face: 14 5/8"

Max. Distance Spindle Center to Baseplate: 46 1/4"

Min. Distance Spindle Center to Baseplate: 20"

Height of Working Surface of Table above Baseplate: 19 5/8"

Working Surface of Table: 19 5/8" x 15 3/4"

Lateral Surface of Table: 19 5/8" x 11 3/4"

Dimensions of Baseplate: 53" x 27 1/2"

Working Surface of Baseplate: 41 3/8" x 27 1/2"

Center Distance Between 3/4" Diameter Foundation Holes: 55 1/2" x 21 5/8"

Vertical Movement on Column of Radial Arm: 26 3/8"

Diameter of Ground Column: 8 5/8"

Quill Movement: 7 5/8"

Spindle Speed Ranges at 60 Cycles: 12 Total (70,95,145,195,220,290,450,600,720,955,1480,1965)

Rate of Power Feed per Rev.: .004,.006,.010,.016

Morse Taper in Spindle: No 4

Power of motor: 3HP

Total Height of machine with Radial Arm in Highest position: 7' 6 1/8"

Net Weight of Machine: 2710LBS
