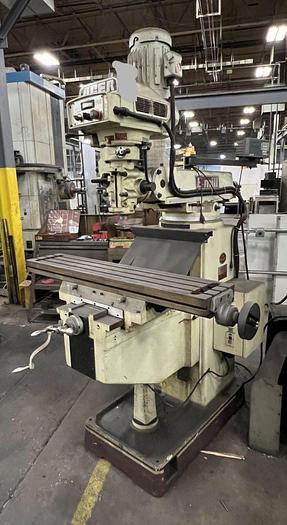

Acer E-mill EVS-3VKH 3 hp Vertical Milling Machine

Acer E-mill EVS-3VKH 3 hp Vertical Milling Machine

3 HP motor with fan cooling system dissipates heat efficiently.

Grease fitting for lubricating the bull gear.

One piece quill pinion & shaft.

Precision hand scraped contact surfaces between turret and column.

X, Y & knee axes hardened & ground to HRC 52°.

Vector-type AC frequency inverter drive.

Hardened & ground table top to HRC 52°.

Licensed "MEEHANITE" casting.

Dish-in coolant base.

Allen-Bradley electrical components.

Extra oiler lubricates the high-low moving device.

Extra oiler to lubricate the quill.

Precision ground ram ways within 0.0004" accuracy.

Precision ground finished lead screws.

Precision ground table guide line to 0.0002" over 20".

Standard accordian type way cover.

Turcite-B coated saddle ways.

LOC 4E

Specifications:

Model 3VKH

Table Working Surface 10" x 50"

Longitudinal Travel 32-1/2"

Cross Travel 17"

Vertical Knee Travel 19"

Ram Travel 20"

T-Slot Number, Size 3, 5/8"

Head Main Motor 3 HP

Head moves right to left 90 deg

Head tilts front to back 45 deg

Spindle Spindle drive Variable

Spindle speed 60 ~ 4,500

Spindle taper R-8

Quill Power quill feeds (in / rev.) 0.0015", 0.003", 0.006"

Quill diameter (Chromed) 3-3/8"

Quill travel 5"

Weight approx. 3,300 lbs.
