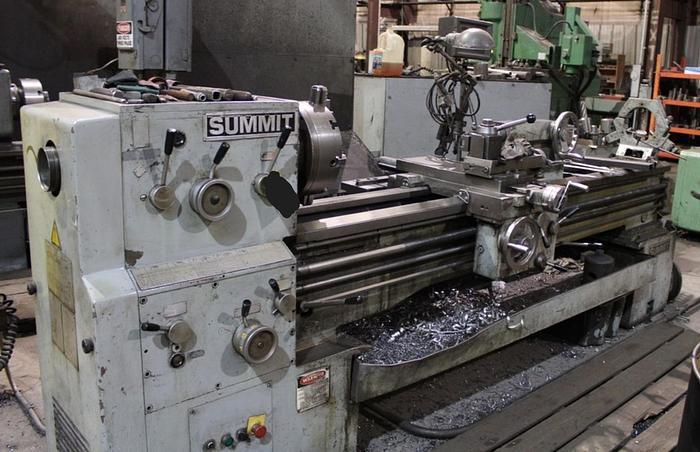

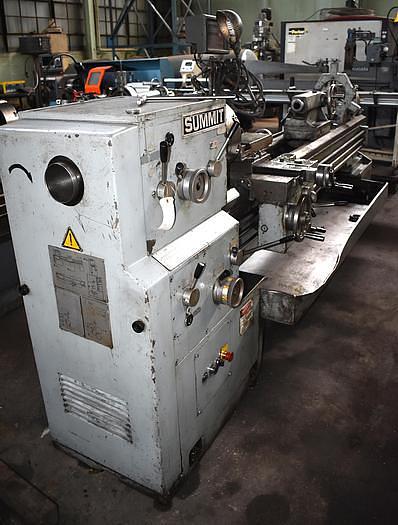

19/27" x 80" SUMMIT "19-4" GAP-TYPE ENGINE LATHE w/TAPER ATTACHMENT & DIGITAL READOUTS

19"/27" x 80" SUMMIT GAP-TYPE ENGINE LATHE

w/TAPER ATTACHMENT & DIGITAL READOUTS

Serial No 073437536, Model 19-4X80

EQUIPPED WITH:

Digital Readouts

Taper Attachment

Threading (Inch-Metric Full-Length Lead Screw)

12" 4-Jaw Chuck w/Jaws

Steady Rest - 4-Way Tool Post

Hardened & Ground Bed Ways

TEMPORARY CATALOG SPECIFICATIONS:

Hole Thru Spindle 4.125"

Swing Over Bed Ways, Rated 19"

Swing thru Gap 27"

Gap Length 15.375"

Swing Over Cross-Slide 10.75"

Distance Between Centers 80"

Workpiece Weight Capacity w/Steady 5000 LBS

Cross-Slide Cross-Feed Travel 13.75"

Compound Rest Travel 6.25"

(12) Spindle Speeds, Range 22 to 1500 RPM

(56) Carriage Longitudinal Feeds .0009 to .112 IPR

(56) Cross-Slide Cross Feeds .0004 to .056 IPR

(56) Metric Feeds, Range .0235 to 2.84

(56) Thread Changes, Range 3/4 to 92 TPI

(35) Metric Thread Changes, Range .25 to 23

(26) Module Threads, Range .25 to 11.5

(56) Diametral Pitch, Range 1.5 to 184 DP

Main Motor, Horsepower/RPM 7.5 HP/1740 RPM

Overall Dimensions, L x W x H 12' x 4' x 5'

Weight Approximately 6800 LBS
