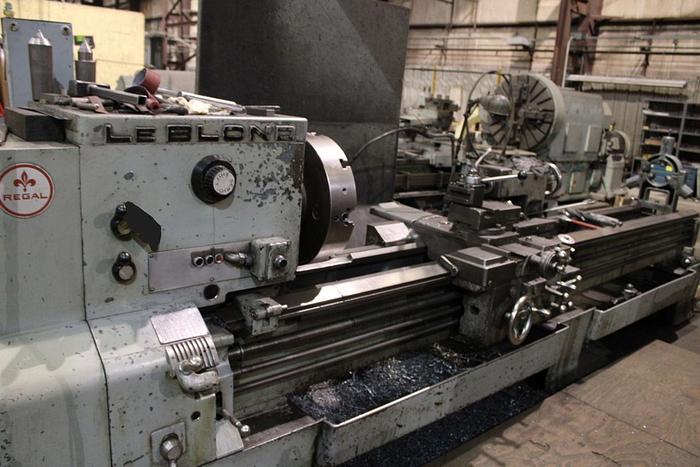

21/22.25" x 120" LEBLOND "REGAL" SERVO-SHIFT ENGINE LATHE

21"/22.25" x 120" LEBLOND "REGAL" SERVO-SHIFT ENGINE LATHE

Serial No 2F629, Model F21, Series "REGAL"

EQUIPPED WITH:

Servo-Shift Spindle Speed Selector

18" 4-Jaw Chuck w/Jaws - (2) Steady Rests

Flame Hardened Bed Ways - 4-Way Tool Post

Quick Change Gear Box and Threading Dial

Full Length Coolant-Chip Pan

CATALOGUE SPECIFICATIONS:

Hole Thru Spindle 2.1875"

Swing Over Bed Ways, Rated 21"

Swing Over Bed Ways, Actual 22.25"

Swing Over Cross-Slide 14.25"

Distance Between Centers 120"

Cross-Slide Cross-Feed Travel 13.25"

Tailstock, Spindle Diameter 3.125"

Tailstock, Spindle Travel 7.5"

(12) Spindle Speeds, Range 18 to 720 RPM

(48) Carriage Longitudinal Feeds .0036 to .205 IPR

(48) Thread Changes, Range 2 to 112 TPI
