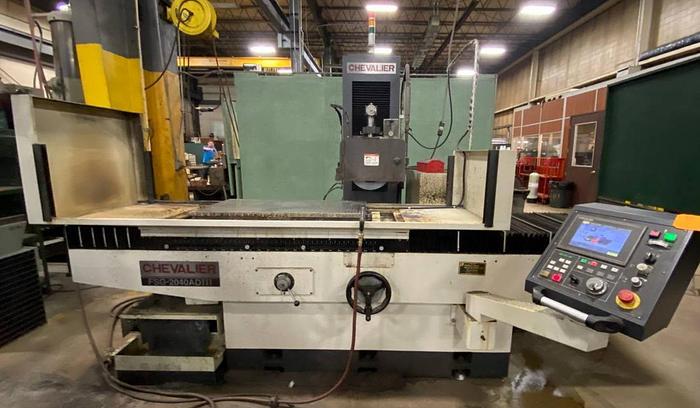

20" x 40" CHEVALIER FULLY-AUTOMATIC HYDRAULIC-FEED 3-AXIS HORIZONTAL-SPINDLE SURFACE GRINDER
New 2017,
Serial No FRC16C003,
Model FSG2040ADIII,
EQUIPPED WITH:
Chevalier ADIII Touch-Screen Control w/Standard Surface Grinding, Plunge
Grinding, And Fully Automatic Grinding Modes
Electro-Magnetic Chuck
Overhead Wheel Dresser
Coolant System w/Paper Filter
CATALOG SPECIFICATIONS:
Table Size Maximum, W x L 20" x 40"
Grinding Width Capacity, Maximum 20"
Grinding Length Capacity, Maximum 40"
Height Table to Spindle Center, Maximum 28.7"
Table Longitudinal Travel, Maximum 43.25"
Cross Travel Stroke, Maximum 22"
Grinding Wheel Diameter, Maximum 14"
Grinding Wheel Width, Maximum 2"
Grinding Wheel Hole Diameter 5"
Spindle Speeds 500~1,800 rpm
Table Longitudinal Feeds, Range 16 to 82 FPM
Cross Movement Automatic Increment, Range .125" to 1.25"
Rapid Traverse Rate, Approximately 5 FPM
Wheelhead Microfeed Per Revolution 0.001"
Wheelhead Rapid Rate, Approximately 15.7 IPM
Spindle Motor Horsepower 10 HP
Hydraulic Motor Horsepower 5 HP
Hydraulic Tank Capacity 52 GALLONS
Overall Dimensions, L x W 133 7/8" x 8' 6"
Overall Height 107"
Weight Approximately 13640 LBS
NOTE: This Machine Features A New User-Friendly Touch Screen
Control With Standard Surface Grinding Programs And A Plunge
Grinding Cycle. There Is Also Optional Crisscross or Zigag And
A CBN Dressing Cycle. So Simple And User-Friendly, All Skill
Levels Can Operate This Control. The Fully-Automatic Grinding
Mode Consists Of Rough-And- Fine Grinding Cycles, Switching
From Rough-Grinding Down-Feed Increments To Fine-Grinding
Down-Feed Increments At Preset Points During The Cycle.
This Crossfeed Also Switches From A Rough To Fine Cross-Feed
Increment, Which Results In A Finer Surface Finish And Finer
Accuracy. Machine Appears To Be In Very Good Condition With A
Replacement Price Of $125,000.00 And Immediate Availability.
