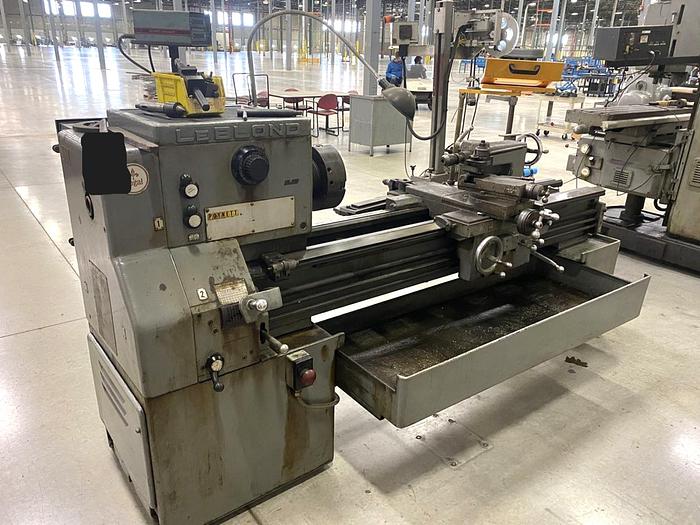

19" X 54" LEBLOND REGAL SERVO SHIFT ENGINE LATHE w/Taper & DRO

19" X 54" LEBLOND REGAL SERVO SHIFT ENGINE LATHE w/Taper & DRO

$7,250 (USD)

Louisville, KY

orCall (502) 219-7311

Description

19" X 54" LEBLOND REGAL ENGINE LATHE


SERIAL ....................... 8E2495

MAX SWING OVER BED ........... 19-1/4"

MAX SWING OVER CROSS SLIDE ... 12-1/4"

SPINDLE BORE ................. 1-49/64"

CAMLOCK SPINDLE NOSE ......... D-1/6"

TAILSTOCK SPINDLE DIA ........ 2-7/16"

12 SPINDLE SPEEDS ............ 45 TO 1800 RPM

48 FEEDS ..................... .0023 TO .132 IPR

THREAD RANGE ................. 2 TO 112 TPI

HARDENED WAYS ................ YES

TAPER ATTACHMENT ............. YES

ROLLER STEADY REST ........... 6" 3 POINT

CHIP PAN & COOLANT ........... YES

2-AXES DIGITAL READOUTS ...... Accurite Quickcount 2 DRO

MOTOR ........................ 7-1/2 HORSEPOWER 230 V

3 Jaw Chuck

4 Jaw Chuck

Approximate dimensions 113" x 40" x 51" high

Approximate weight 4,450 lbs.





Specifications

ManufacturerLEBLOND
ModelRegal
ConditionUsed
Serial Number8E2495
Stock Number1468
