17″ x 45″ Clausing Metosa EL-1745CS CNC Tool Room Lathe W/Fagor 800T CNC Control

17″ x 45″ Clausing Metosa EL-1745CS CNC Tool Room Lathe W/Fagor 800T CNC Control

$14,500 (USD)

Louisville, KY

orCall (502) 219-7311

Description

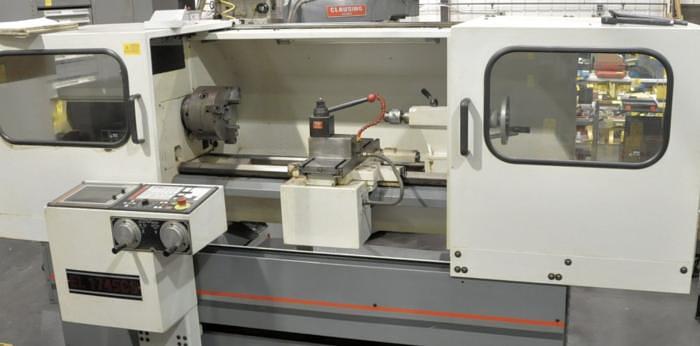

17" x 45" Clausing Metosa EL-1745CS CNC Tool Room Lathe

S/n 33129,

17" Swing, 45" Centers,

Fagor 2-Axis CNC Control,

10" 3-Jaw Chuck

7.5 HP Constant Surface Speed Electronic Lathe

Machine Style(s): Universal

Spindle Direction: Horizontal

Operation Type: CNC/Manual

HEADSTOCK

Turning Diameter Max: 16.125

Turning Length (in.) Max: 45.000

Tailstock: Standard (in.)

Quill Dia: 2.310

Quill Center: MT 4

Body Travel: 6.250

SINGLE SPINDLE

# of Main Spindles: 1

Main Spindle: rpm: 2300 HP: 7.50

Nose: D1-6

# Speed Ranges: 3

TOOLING

Primary Tool Carrier: SLIDE

Max Tools Turning: 12

Tool Shank Size (in.): Square: 0.750

# of Simultaneous Cutting Tools: 1

Secondary Mill/Drill Function

AXES AND TRAVELS

Number of Axes: Standard: 2

Travel                   Max Feed      Rapid Rate

X1 Std. 8.250 in.          118 ipm       200 ipm

Z1 Std. 45.000 in.       118 ipm       200 ipm

WEIGHTS AND MEASURES

Length 87 in.

Width 63 in.

Height 63 in.

Weight 3,665 lbs.

Excellent Condition

Specifications

ManufacturerClausing
ModelEL-1745CS
ConditionUsed
Serial Number33129
Stock Number1444
