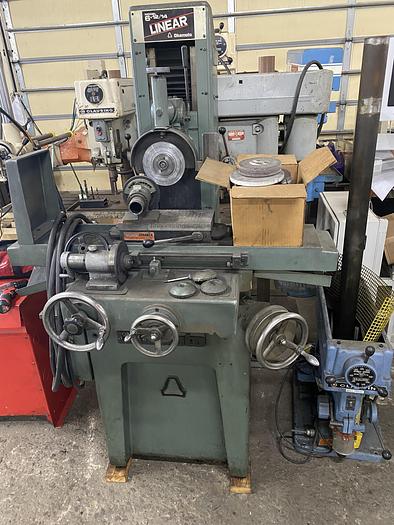

Okamoto 6″ x 12"/14″ Linear Hand Feed Surface Grinder
Description
Okamoto 6″ x 12"/14″ Linear Hand Feed Surface Grinder Specifications: Table Travel: X: 21″ , Y: 8″ Equipment Included: Whell Dresser Walker 6″ x 12″ Magnetic Chuck Linear Ball Bearing Ways One Shot Lube Matic Lubrication System
Comes with 2-5C Spin Index Fixtures and tooling
New Crossfeed Screw
Specifications
| Manufacturer | Okamoto |
| Model | Linear 6.12/14 |
| Year | 1985 |
| Condition | Used |
| Serial Number | 1077 |
| Stock Number | 1410 |
| Weight | 1800 lbs |
| Table size | 6″ x 12″ |
| Max. wheel size | 8″ x 1″ x 1 1/4″ |
| Vertical working | 11″ height under 8″ wheel to chuck |
| Max/ peripheral speed | 8,000 sfpm |
| Spindle speed | 3,180 rpm |
| Motor | 2 hp / 230 v/ 460 v / 3 ph |
| Overall dimensions | 76″ L x 46″ W x 71″ H |
| Overall weight | approx. 1,800 lbs |
